Greenfield
C69412

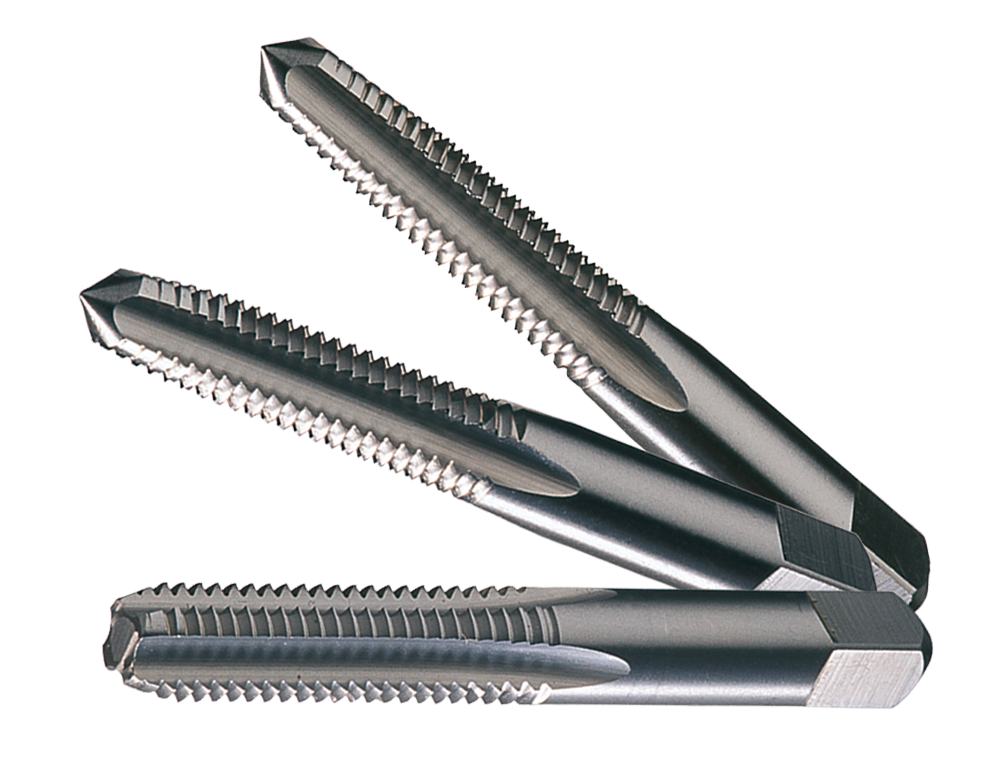

Taper, Plug, and Bottoming Carbon Steel Hand Tap Set
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Length (Metric) | 63.5 |
| Flute Type | Straight |
| Diameter (Metric) | 6.35 |
| Short Description | Taper, Plug, and Bottoming Carbon Steel Hand Tap Set |
| Diameter | 0.25 |
| Measurement System | Imperial |
| Tool Size | 1/4-20 UNC |
| Pack Qty | 1 |
| ECCN | EAR99 |
| UNSPSC | 27112806 |
| Diameter (Wire) | E |
| Shank Size (Metric) | 6.48 |
| Shank Size | 0.255 |
| Surface Condition | Bright |
| Tap Style | Straight Flute Hand Tap |
| Double Ended | No |
| Tap Ground Threads | Yes |
| Tap Type | Hand Tap |
| Tap Interrupted Thread | No |
| Thread Pitch | 20 |
| Overall Length (Decimal Inch) | 2.5 |
| Tap Blank Construction | USCTI Table 302 |
| Shank Square Length | 0.3125 |
| Thread Length | 1 |
| Shank Configuration | Straight w/ Square |
| Tap Truncated Threads | No |
| Thread Form | UNC |
| Tap Spiral Point | No |
| Diameter (Decimal Inch) | 0.25 |
| Application | Maintenance |
| Set | Yes |
| Thread Size Decimal Equiv | 0.25 |
| Tap Construction | Standard |
