Greenfield
C76268

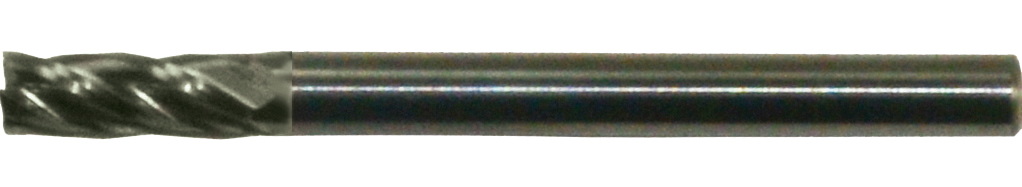

Cleveland 4-Flute Mini Solid Carbide End Mill
Specifications
| Shank Size (Inch) | 0.13 |
|---|---|
| Type | Mini Solid |
| Shank Type | Straight |
| Overall Length (Inch) | 1.5 |
| Overall Length (Metric) | 38.1 |
| Length Of Cut (Inch) | 0.19 |
| Flute Type | Spiral |
| Number Of Flutes | 4 |
| Material | Carbide |
| Coating/Finish | AlCrN |
| Double Ended | No |
| Diameter (Metric) | 3.5 |
| Shank Size (Metric) | 3.17 |
| Cutting Direction | Right |
| Diameter (Inch) | 0.1378 |
| Unit Of Measure | Metric |
| Short Description | 4-Flute Mini Solid Carbide End Mill |
| Shank Size | 3.17 mm |
| Overall Length | 38.1 mm |
| Hand Of Spiral | Right |
| Mill Construction | Mini Solid |
| Center Cutting | Yes |
| Brand Name | Cleveland |
| Mill End Style | Square |
| Tool Size | 3.5mm x 3/16" x 0.1875" x 2" |
| ECCN | EAR99 |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Type | End Mill |
| Pack Qty | 1 |
| Package Type | Tube |
| Set | No |
| UNSPSC | 27112803 |
| Diameter | 0.1378 |
| Base Item Number | CMCE-4-AL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Surface Condition | AlCrN |
| Overall Length (Decimal Inch) | 1.5 |
| Shank Configuration | Straight |
| Measurement System | Metric |
| Diameter (Decimal Inch) | 0.1378 |
