Greenfield
C91719

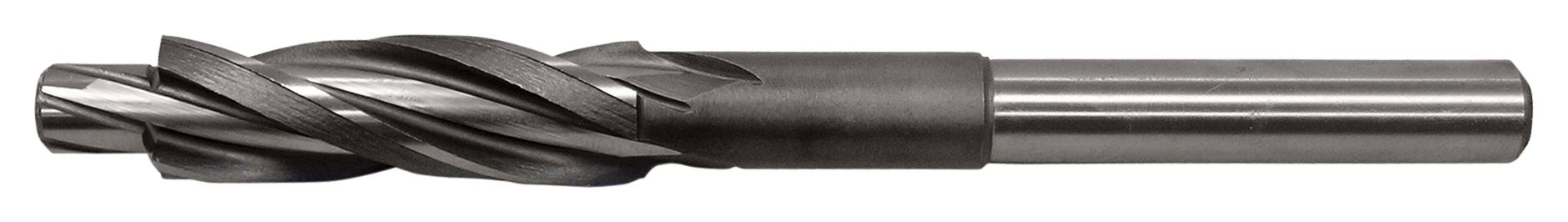

3-Flute Continuous Counterbore
Specifications
| Overall Length (Metric) | 177.8 |
|---|---|
| Shank Size (Metric) | 12.7 |
| Short Description | 3-Flute Continuous Counterbore |
| Flute Length | 2.75 |
| Shank Size | 0.5 |
| Surface Condition | Bright |
| Double Ended | No |
| Shank Length | 2.562 |
| UNSPSC | 23241603 |
| Overall Length (Decimal Inch) | 7 |
| Diameter (Metric) | 16.66 |
| Shank Configuration | Straight |
| Pack Qty | 1 |
| Diameter (Decimal Inch) | 0.656 |
| Diameter | 0.656 |
| Set | No |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Size | 15/32" x 21/32" x 1/2" |
| ECCN | EAR99 |
