Greenfield
C95027

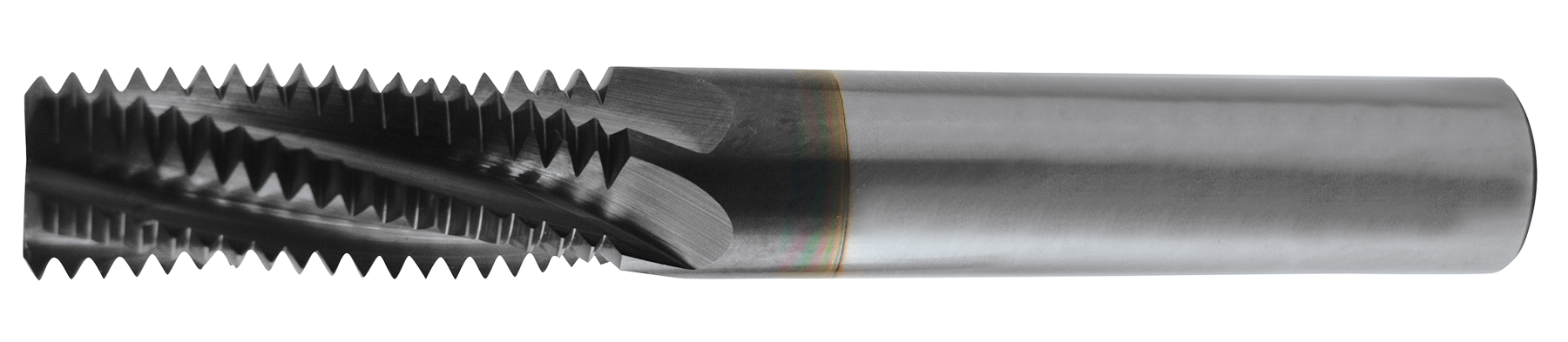

UN Coolant-Thru Thread Mill
Specifications
| Overall Length (Metric) | 63.5 |
|---|---|
| Shank Size (Metric) | 4.76 |
| Diameter (Metric) | 4.57 |
| Short Description | UN Coolant-Thru Thread Mill |
| Thread Pitch | 28 |
| Mill Construction | Coolant Through |
| Shank Size | 0.1875 |
| Surface Condition | TiAlN |
| Diameter (Wire) | 15 |
| Double Ended | No |
| UNSPSC | 23291800 |
| Overall Length (mm) | 6.35 cm |
| Shank Configuration | Straight |
| Thread Form | UNF |
| Pack Qty | 1 |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.18 |
| Diameter | 0.18 |
| Set | No |
| Thread Size Decimal Equiv | 0.25 |
| Tool Size | 1/4-28 UNF |
| ECCN | EAR99 |
