Greenfield
C95043

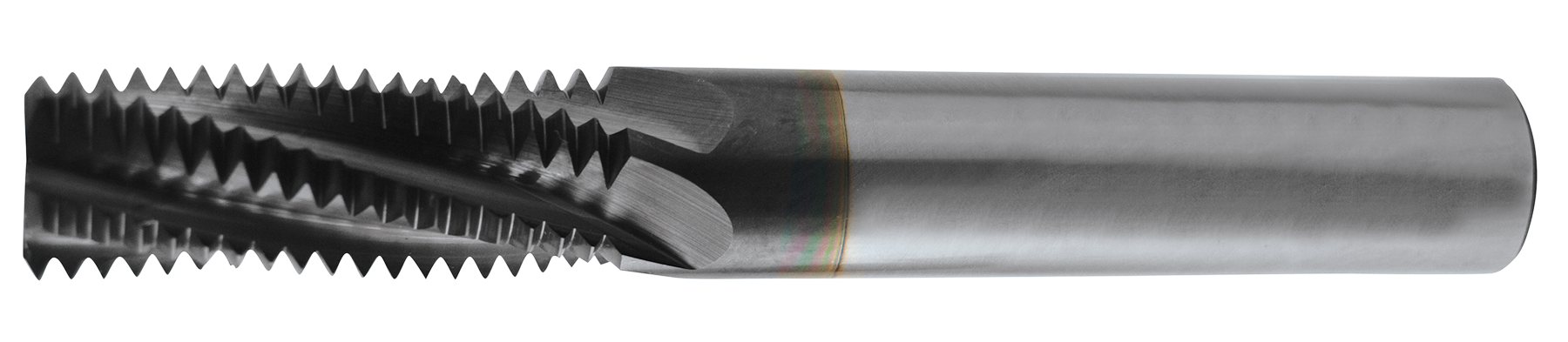

UN Coolant-Thru Thread Mill
Specifications
| Overall Length (Metric) | 88.9 |
|---|---|
| Shank Size (Metric) | 12.7 |
| Diameter (Metric) | 12.57 |
| Short Description | UN Coolant-Thru Thread Mill |
| Thread Pitch | 14 |
| Mill Construction | Coolant Through |
| Shank Size | 0.5 |
| Surface Condition | TiAlN |
| Double Ended | No |
| UNSPSC | 23291800 |
| Overall Length (mm) | 8.89 cm |
| Shank Configuration | Straight |
| Thread Form | UNF |
| Pack Qty | 1 |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.495 |
| Diameter | 0.495 |
| Set | No |
| Thread Size Decimal Equiv | 0.875 |
| Tool Size | 7/8-14 UNF |
| ECCN | EAR99 |
