Greenfield
C95068

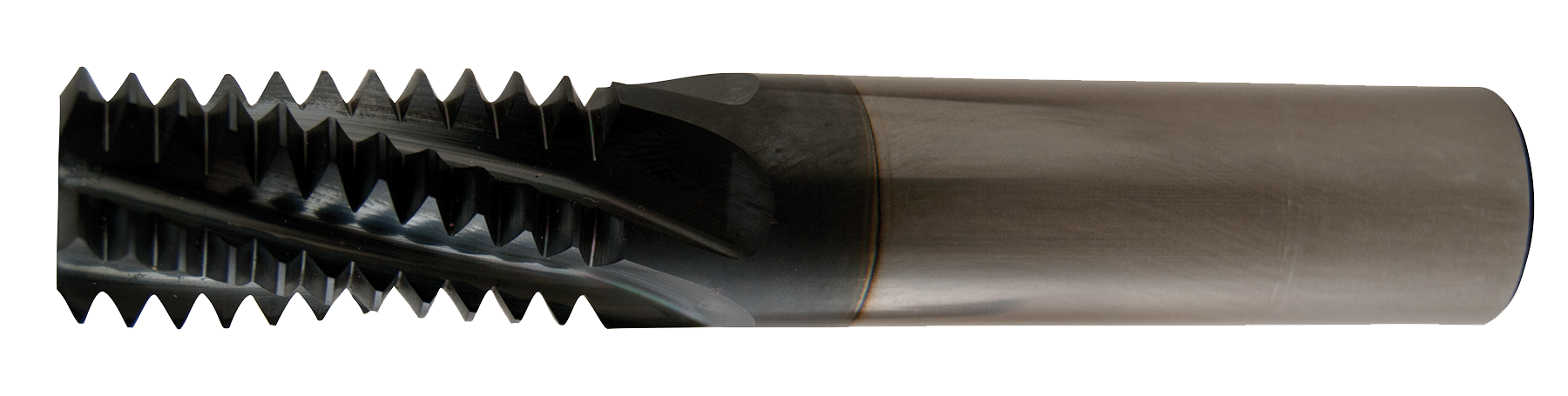

BSPT Coolant-Thru Thread Mill
Specifications
| Overall Length (Metric) | 63.5 |
|---|---|
| Shank Size (Metric) | 6.35 |
| Diameter (Metric) | 6.1 |
| Short Description | BSPT Coolant-Thru Thread Mill |
| Thread Pitch | 28 |
| Mill Construction | BSPT Coolant Through |
| Shank Size | 0.25 |
| Surface Condition | TiAlN |
| Double Ended | No |
| UNSPSC | 23291800 |
| Overall Length (mm) | 6.35 cm |
| Shank Configuration | Straight |
| Thread Form | BSPT |
| Pack Qty | 1 |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.24 |
| Diameter | 0.24 |
| Set | No |
| Tool Size | 1/16, 1/8-28 BSPT |
| ECCN | EAR99 |
