Greenfield
C95120

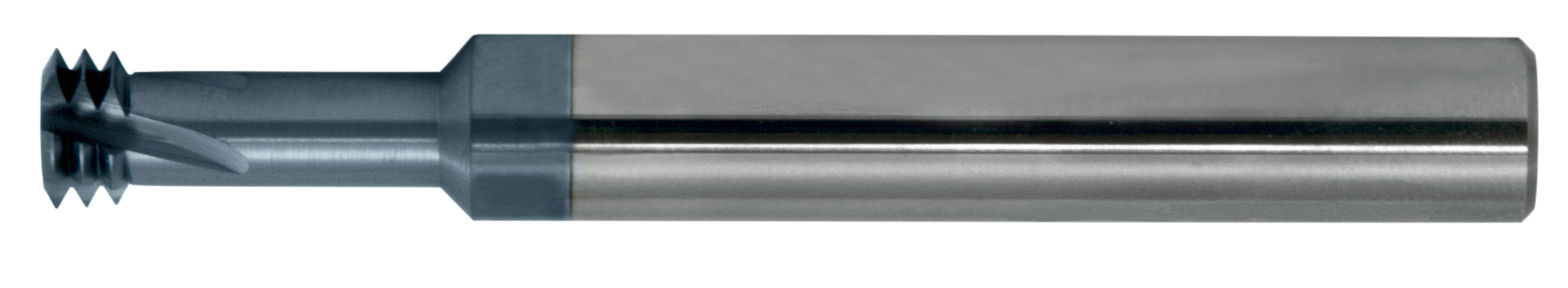

UN Thread Mill
Specifications
| Overall Length (Metric) | 63.5 |
|---|---|
| Shank Size (Metric) | 6.35 |
| Diameter (Metric) | 2.16 |
| Short Description | UN Thread Mill |
| Thread Pitch | 40 |
| Mill Construction | Solid |
| Shank Size | 0.25 |
| Surface Condition | AlCrN |
| Notes | Cut Depth/Length of Cut of l is less than or equal to 3*Diameter |
| UNSPSC | 23291800 |
| Overall Length (mm) | 6.35 cm |
| Shank Configuration | Straight |
| Thread Form | UNC/UNF |
| Pack Qty | 1 |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.085 |
| Diameter | 0.085 |
| Set | No |
| Thread Tolerance | 2B |
| Tool Size | #4-40, #5-40 UNC, #6-40 UNF |
| ECCN | EAR99 |
