Guhring
9003010003750

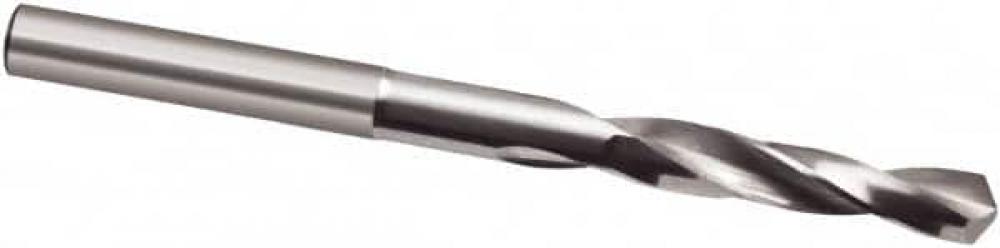

HSS-E-PM, Micro-Precision (Type N), 118° point, reinforced straight shank, RH helix
Specifications
| Flute Length (Inch) | 0.09 |
|---|---|
| Type | Micro Precision |
| Overall Length (Inch) | 0.98 |
| Shank Size (Inch) | 0.04 |
| Material | HSS-E-PM |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 0.01 |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |
| Overall Length | 25 mm |
| Point Angle | 118 degrees |
| Diameter | 0.375 mm |
| Flute Length | 2.40 mm |
| Shank Size | 1 mm |
| Shank Type | Straight |
| Series | 301 |
| Drilling Depth (Decimal) | 0.07 |
| Drilling Depth (Metric) | 1.84 |
| Base Item Number | Micro Precision, Type N, Stub, HSS-E-PM, Uncoated, 118° Point |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Drilling Depth | Stub length |
| Order Code | 0.3750 |
| Coolant | no |
| d2 (in) | 0.0394 |
| ItemWeight | 0.0010 |
| Substrate | HSS-E-PM |
| PackWeight | 0.0220 |
| tmax (in) | 0.0720 |
| L1 (inch) | 0.9840 |
| Shank Type-2 | straight |
| L2 (mm) | 2.4000 |
| tmax (mm) | 1.8400 |
| ShankCategory | straight |
| Substrate Category | Powdered Metal |
| d1 (in) | 0.0148 |
| L1 (mm) | 25.0000 |
| D2 (mm) | 1.0000 |
| L 2(inch) | 0.0940 |
| D1 (mm) | 0.3750 |
