Guhring
9003010014200

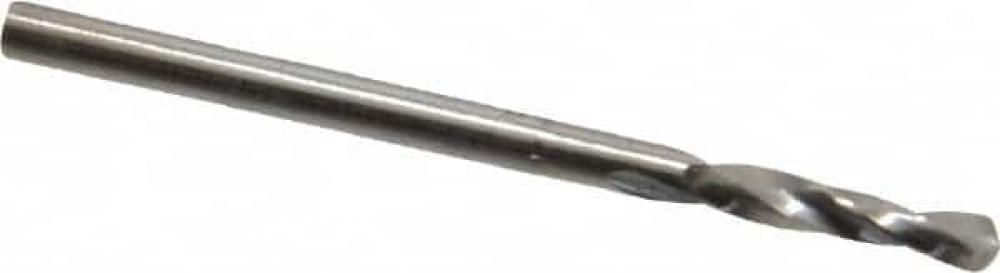

HSS-E-PM, Micro-Precision (Type N), 118° point, reinforced straight shank, RH helix
Specifications
| Flute Length (Inch) | 0.37 |
|---|---|
| Type | Micro Precision |
| Overall Length (Inch) | 0.98 |
| Shank Size (Inch) | 0.06 |
| Material | HSS-E-PM |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 0.06 |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |
| Overall Length | 25 mm |
| Point Angle | 118 degrees |
| Diameter | 1.42 mm |
| Flute Length | 9.50 mm |
| Shank Size | 1.50 mm |
| Shank Type | Straight |
| Series | 301 |
| Drilling Depth (Decimal) | 0.29 |
| Drilling Depth (Metric) | 7.37 |
| Base Item Number | Micro Precision, Type N, Stub, HSS-E-PM, Uncoated, 118° Point |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Drilling Depth | Stub length |
| Order Code | 1.4200 |
| Coolant | no |
| d2 (in) | 0.0591 |
| ItemWeight | 0.0010 |
| Substrate | HSS-E-PM |
| PackWeight | 0.0220 |
| tmax (in) | 0.2900 |
| L1 (inch) | 0.9840 |
| Shank Type-2 | straight |
| L2 (mm) | 9.5000 |
| tmax (mm) | 7.3700 |
| ShankCategory | straight |
| Substrate Category | Powdered Metal |
| d1 (in) | 0.0559 |
| L1 (mm) | 25.0000 |
| D2 (mm) | 1.5000 |
| L 2(inch) | 0.3740 |
| D1 (mm) | 1.4200 |
