Guhring
9003290015900

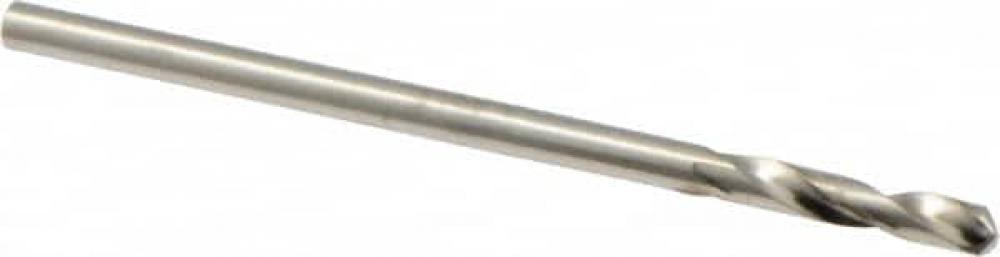

Cobalt, Heavy Duty (Type GV120), stub length, 130° point, Form A web thinned >2.36mm dia.
Specifications
| Flute Length (Metric) | 10 |
|---|---|
| Diameter (Metric) | 1.59 |
| Type | Heavy Duty |
| Overall Length (Inch) | 1.34 |
| Overall Length (Metric) | 34 |
| Material | HSCO |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 1/16 |
| Number Of Flutes | 2 |
| Shank Size (Metric) | 1.59 |
| Unit Of Measure | Fractional |
| Overall Length | 1.34 Inch |
| Point Angle | 130 degrees |
| Diameter | 1/16 Inch |
| Flute Length | 0.39 Inch |
| Shank Size | 0.06 Inch |
| Shank Type | Straight |
| Series | 329 |
| Drilling Depth (Decimal) | 0.3 |
| Drilling Depth (Metric) | 7.62 |
| Base Item Number | GV 120 Heavy Duty, Stub, HSCO, Steam Oxide, 130° Point |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Drilling Depth | Stub length |
| Order Code | 1.5900 |
| Coolant | no |
| d2 (in) | 0.0626 |
| ItemWeight | 0.0010 |
| Substrate | HSCO |
| PackWeight | 0.0220 |
| tmax (in) | 0.3000 |
| L1 (inch) | 1.3390 |
| L2 (mm) | 10.0000 |
| tmax (mm) | 7.6200 |
| ShankCategory | straight |
| Substrate Category | Cobalt |
| d1 (in) | 0.0626 |
| L1 (mm) | 34.0000 |
| D2 (mm) | 1.5900 |
| L 2(inch) | 0.3940 |
| D1 (mm) | 1.5900 |
