Guhring
9005150039100

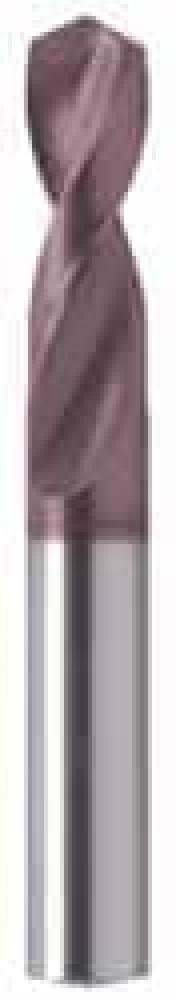

PM Cobalt, stub length, 130° cone-relief point, Special GN Type B web thinned, standard s
Specifications
| Flute Length (Metric) | 22 |
|---|---|
| Diameter (Metric) | 3.91 |
| Type | GT 500 DZ |
| Overall Length (Inch) | 2.17 |
| Overall Length (Metric) | 55 |
| Material | HSS-E-PM |
| Coating/Finish | nano-FIREX |
| Diameter (Inch) | 0.15 |
| Number Of Flutes | 2 |
| Shank Size (Metric) | 3.91 |
| Unit Of Measure | Wire |
| Overall Length | 2.17 Inch |
| Point Angle | 130 degrees |
| Diameter | #23 |
| Flute Length | 0.87 Inch |
| Shank Size | 0.15 Inch |
| Shank Type | Straight |
| Series | 515 |
| Drilling Depth (Decimal) | 0.64 |
| Drilling Depth (Metric) | 16.14 |
| Base Item Number | GT 500 DZ Parabolic, Stub, HSS-E-PM, nano-FIREX, 130° Point |
| Product Type | Industrial Supplies |
| Unit of Measure | Wire |
| Drilling Depth | Stub length |
| Order Code | 3.9100 |
| Coolant | no |
| d2 (in) | 0.1539 |
| ItemWeight | 0.0050 |
| Substrate | HSS-E-PM |
| PackWeight | 0.0110 |
| tmax (in) | 0.6350 |
| L1 (inch) | 2.1650 |
| L2 (mm) | 22.0000 |
| tmax (mm) | 16.1400 |
| ShankCategory | straight |
| Substrate Category | Powdered Metal |
| d1 (in) | 0.1539 |
| Letter Size Code | 23.0000 |
| L1 (mm) | 55.0000 |
| D2 (mm) | 3.9100 |
| L 2(inch) | 0.8660 |
| D1 (mm) | 3.9100 |
