Guhring
9005150096000

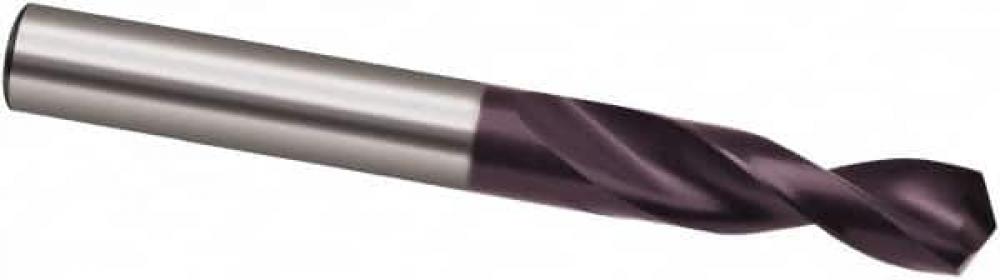

PM Cobalt, stub length, 130° cone-relief point, Special GN Type B web thinned, standard s
Specifications
| Flute Length (Inch) | 1.69 |
|---|---|
| Type | GT 500 DZ |
| Overall Length (Inch) | 3.5 |
| Shank Size (Inch) | 0.38 |
| Material | HSS-E-PM |
| Coating/Finish | nano-FIREX |
| Diameter (Inch) | 0.38 |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |
| Overall Length | 89 mm |
| Point Angle | 130 degrees |
| Diameter | 9.6 mm |
| Flute Length | 43 mm |
| Shank Size | 9.60 mm |
| Shank Type | Straight |
| Series | 515 |
| Drilling Depth (Decimal) | 1.13 |
| Drilling Depth (Metric) | 28.6 |
| Base Item Number | GT 500 DZ Parabolic, Stub, HSS-E-PM, nano-FIREX, 130° Point |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Drilling Depth | Stub length |
| Order Code | 9.6000 |
| Coolant | no |
| d2 (in) | 0.3780 |
| ItemWeight | 0.0400 |
| Substrate | HSS-E-PM |
| PackWeight | 0.0882 |
| tmax (in) | 1.1260 |
| L1 (inch) | 3.5040 |
| L2 (mm) | 43.0000 |
| tmax (mm) | 28.6000 |
| ShankCategory | straight |
| Substrate Category | Powdered Metal |
| d1 (in) | 0.3780 |
| L1 (mm) | 89.0000 |
| D2 (mm) | 9.6000 |
| L 2(inch) | 1.6930 |
| D1 (mm) | 9.6000 |
