Guhring
9005350045700

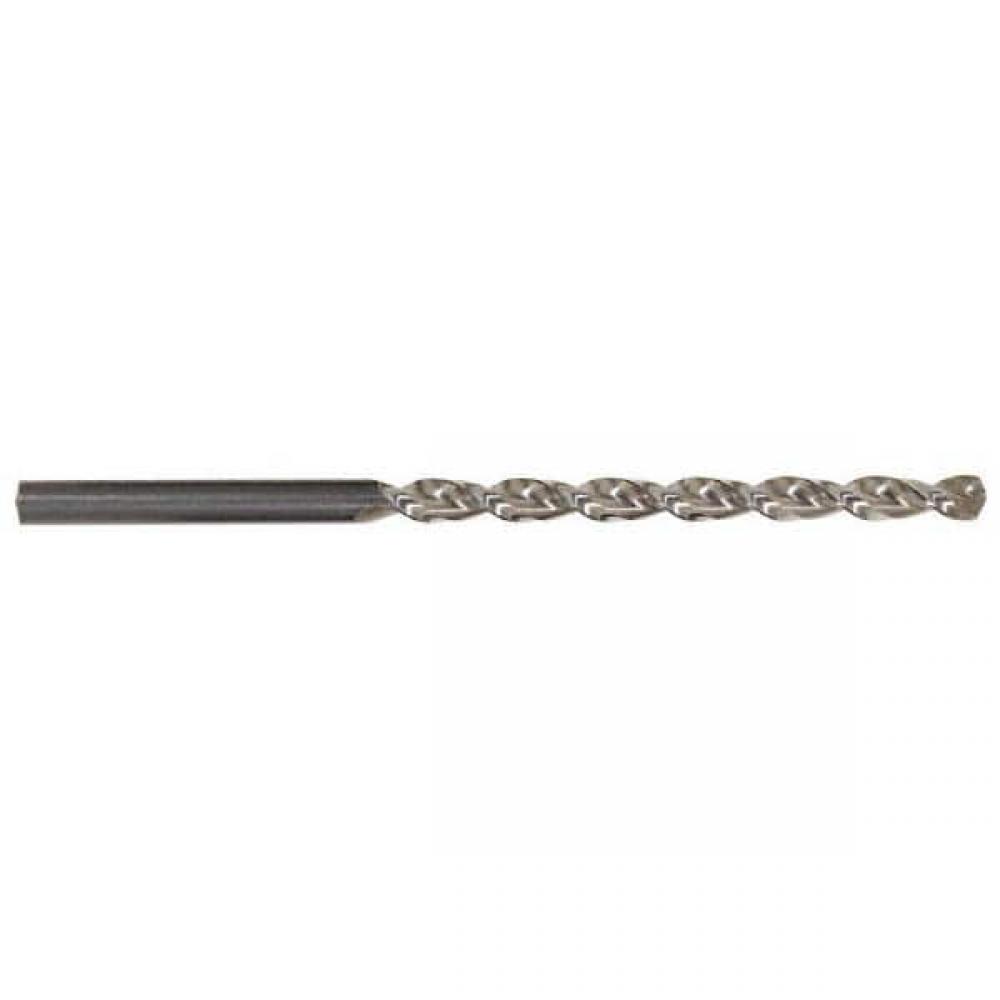

HSS, GT 100 deep hole, taper length, 130° point, Form A web thinned all dia., standard st
Specifications
| Weight | 0.0120 |
|---|---|
| Type | GT 100 |
| Number Of Flutes | 2 |
| Diameter | #15 |
| Shank Type | straight |
| Point Angle | 130° |
| Drill Point Angle | 130° |
| Pack Qty | 1.0000 |
| Coolant | no |
| Substrate Type | HSS |
| Drilling Depth | Taper length |
| Order Code | 4.5700 |
| d2 (in) | 0.1799 |
| ItemWeight | 0.0120 |
| Substrate | HSS |
| PackWeight | 0.0265 |
| tmax (in) | 2.9590 |
| L1 (inch) | 4.9610 |
| L2 (mm) | 82.0000 |
| tmax (mm) | 75.1500 |
| ShankCategory | straight |
| Substrate Category | High Speed Steel |
| d1 (in) | 0.1799 |
| Letter Size Code | 15.0000 |
| L1 (mm) | 126.0000 |
| D2 (mm) | 4.5700 |
| L 2(inch) | 3.2280 |
| D1 (mm) | 4.5700 |
