Guhring
9005520115000

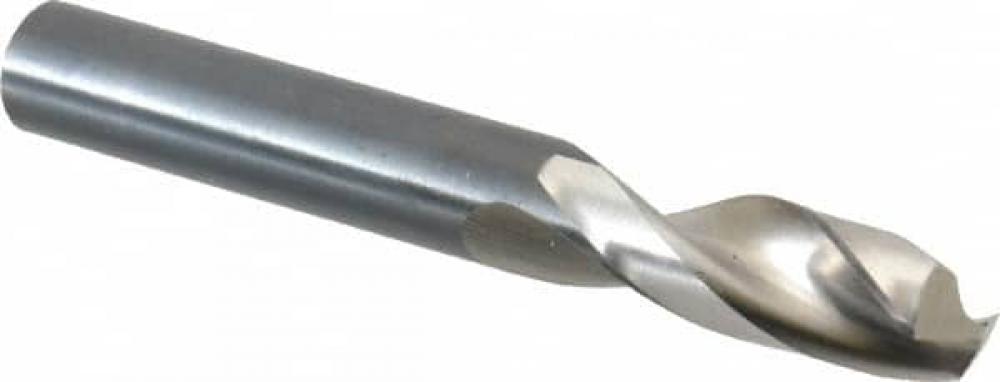

HSS, GT 80, stub length, 130° point, Special web thinned all dia., standard straight shan
Specifications
| Flute Length (Inch) | 1.85 |
|---|---|
| Type | GT 80 |
| Overall Length (Inch) | 3.74 |
| Shank Size (Inch) | 0.45 |
| Material | HSS |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 0.45 |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |
| Overall Length | 95 mm |
| Point Angle | 130 degrees |
| Diameter | 11.5 mm |
| Flute Length | 47 mm |
| Shank Size | 11.50 mm |
| Shank Type | Straight |
| Series | 552 |
| Drilling Depth (Decimal) | 1.17 |
| Drilling Depth (Metric) | 29.75 |
| Base Item Number | GT 80 Parabolic, Stub, HSS, Uncoated, 130° Point |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Drilling Depth | Stub length |
| Order Code | 11.5000 |
| Coolant | no |
| d2 (in) | 0.4528 |
| ItemWeight | 0.0600 |
| Substrate | HSS |
| PackWeight | 0.1323 |
| tmax (in) | 1.1710 |
| L1 (inch) | 3.7400 |
| L2 (mm) | 47.0000 |
| tmax (mm) | 29.7500 |
| ShankCategory | straight |
| Substrate Category | High Speed Steel |
| d1 (in) | 0.4528 |
| L1 (mm) | 95.0000 |
| D2 (mm) | 11.5000 |
| L 2(inch) | 1.8500 |
| D1 (mm) | 11.5000 |
