Guhring
9005560127000

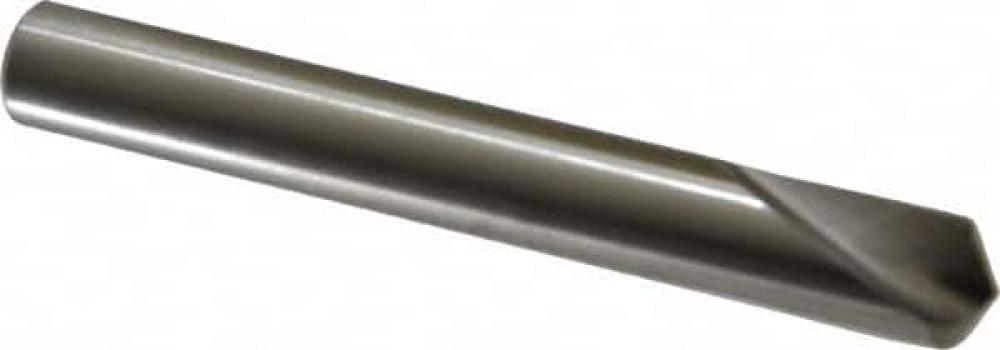

NC Spot Drill
Specifications
| Type | NC Spot Drill |
|---|---|
| Point Angle | 120° |
| Short Description | NC Spot Drill, 120deg, 1/2, HSS, Uncoated |
| Coolant | no |
| Shank Type | straight |
| Diameter | 1/2 |
| Order Code | 12.7000 |
| Flutes | 2.0000 |
| d2 (in) | 0.5000 |
| ItemWeight | 0.0900 |
| Substrate | HSS |
| PackWeight | 0.1984 |
| tmax (in) | 0.4310 |
| GTIN | 04031093176378 |
| L1 (inch) | 4.0160 |
| Coating | Uncoated |
| L2 (mm) | 30.0000 |
| Series | 556 |
| tmax (mm) | 10.9500 |
| ShankCategory | straight |
| Substrate Category | High Speed Steel |
| d1 (in) | 0.5000 |
| L1 (mm) | 102.0000 |
| D2 (mm) | 12.7000 |
| L 2(inch) | 1.1810 |
| D1 (mm) | 12.7000 |
