Guhring
9006050145000

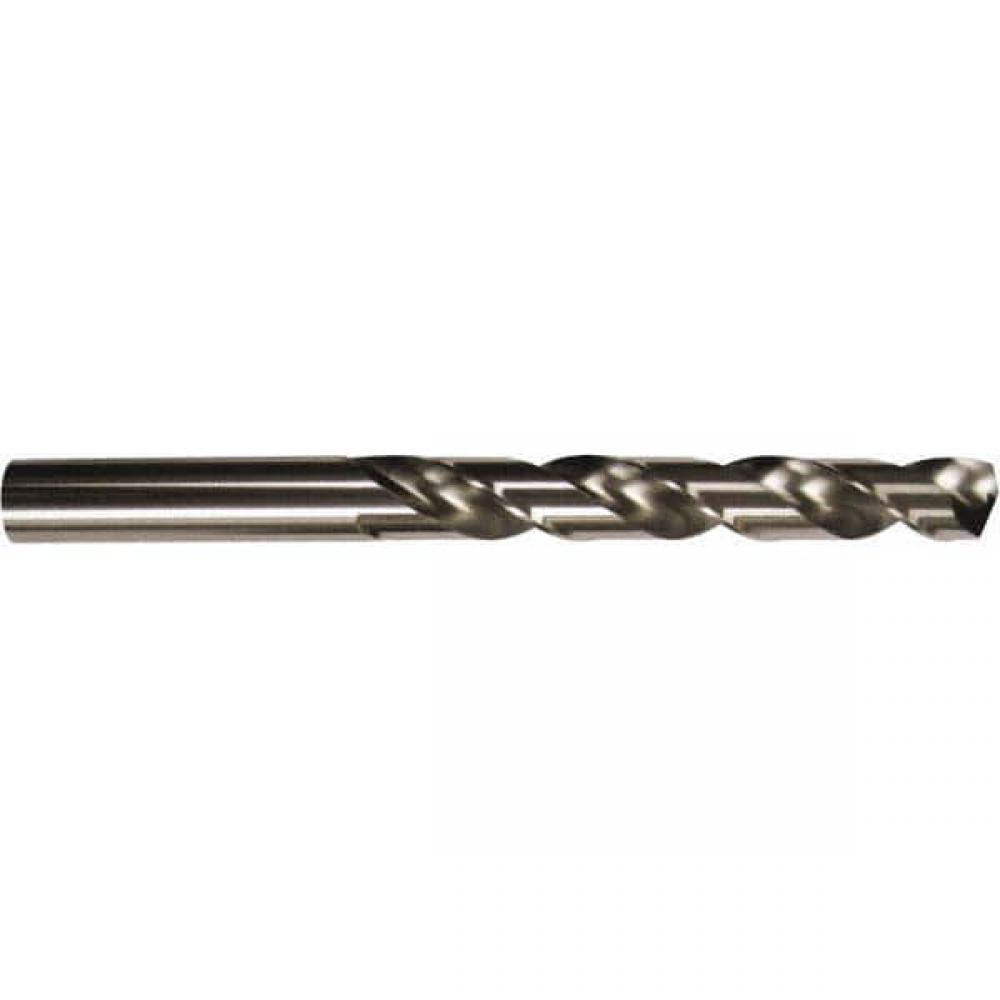

Cobalt, Type Ti, jobber length, self-centering 130° split point, web thinned >1.0mm dia.,
Specifications
| Weight | 0.1590 |
|---|---|
| Coating | Uncoated |
| Coolant | no |
| Diameter | 14.5mm |
| GTIN | 04031093186667 |
| Pack Qty | 1.0000 |
| Point Angle | 130° Split Point |
| Series | 605 |
| Shank Type | straight |
| Short Description | Drill, 14.5mm Jobber, Ti, HSCO, Uncoated |
| Substrate Type | HSCO |
| Type | Ti |
| Drilling Depth | Jobber length |
| Order Code | 14.5000 |
| Flutes | 2.0000 |
| d2 (in) | 0.5709 |
| ItemWeight | 0.1590 |
| Substrate | HSCO |
| PackWeight | 0.3504 |
| tmax (in) | 3.6320 |
| L1 (inch) | 6.6540 |
| L2 (mm) | 114.0000 |
| tmax (mm) | 92.2500 |
| ShankCategory | straight |
| Substrate Category | Cobalt |
| d1 (in) | 0.5709 |
| L1 (mm) | 169.0000 |
| D2 (mm) | 14.5000 |
| L 2(inch) | 4.4880 |
| D1 (mm) | 14.5000 |
