Guhring
9006100084000

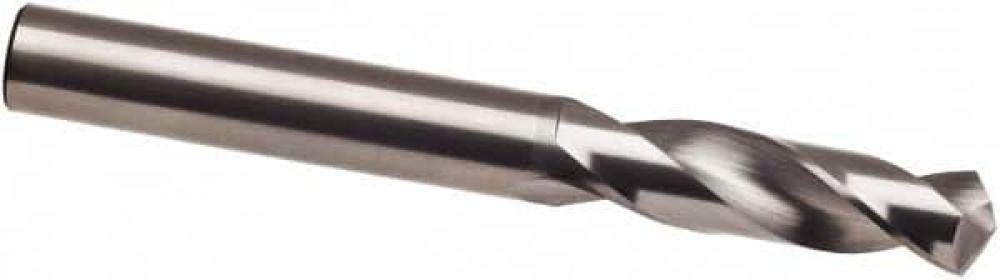

Cobalt stub length, self-centering 130° split point, web thinned all dia., standard strai
Specifications
| Weight | 0.0310 |
|---|---|
| Coating | Uncoated |
| Coolant | no |
| Diameter | 8.4mm |
| GTIN | 04049844109216 |
| Pack Qty | 1.0000 |
| Point Angle | 135° Split Point |
| Series | 610 |
| Shank Type | straight |
| Short Description | Drill, 8.4mm Stub, GU 500 DZ, HSCO, Uncoated |
| Substrate Type | HSCO |
| Type | Ti |
| Drilling Depth | Stub length |
| Order Code | 8.4000 |
| Flutes | 2.0000 |
| d2 (in) | 0.3307 |
| ItemWeight | 0.0310 |
| Substrate | HSCO |
| PackWeight | 0.0683 |
| tmax (in) | 0.9610 |
| L1 (inch) | 3.1100 |
| L2 (mm) | 37.0000 |
| tmax (mm) | 24.4000 |
| ShankCategory | straight |
| Substrate Category | Cobalt |
| d1 (in) | 0.3307 |
| L1 (mm) | 79.0000 |
| D2 (mm) | 8.4000 |
| L 2(inch) | 1.4570 |
| D1 (mm) | 8.4000 |
