Guhring
9006590067500

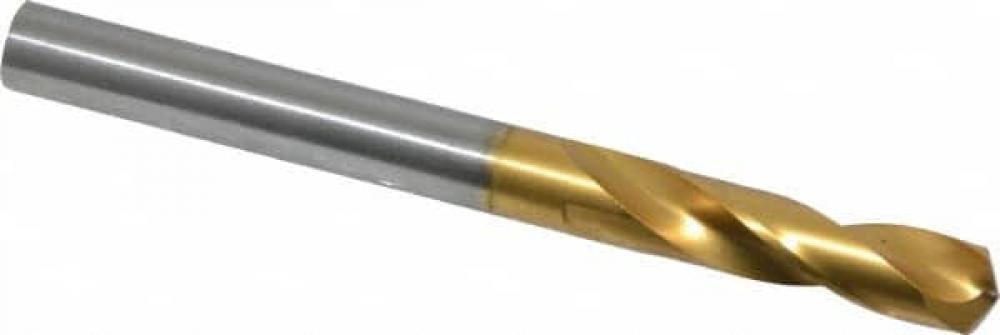

Cobalt, heavy duty (type GV120), stub length, 130° point, Form A web thinned >2.36mm dia.
Specifications
| Flute Length (Metric) | 34 |
|---|---|
| Diameter (Metric) | 6.75 |
| Type | Heavy Duty |
| Overall Length (Inch) | 2.91 |
| Overall Length (Metric) | 74 |
| Material | HSCO |
| Coating/Finish | TiN |
| Diameter (Inch) | 17/64 |
| Number Of Flutes | 2 |
| Shank Size (Metric) | 6.75 |
| Unit Of Measure | Fractional |
| Overall Length | 2.91 Inch |
| Point Angle | 130 degrees |
| Diameter | 17/64 Inch |
| Flute Length | 1.34 Inch |
| Shank Size | 0.27 Inch |
| Shank Type | Straight |
| Diameter (Letter) | H |
| Series | 659 |
| Drilling Depth (Decimal) | 0.94 |
| Drilling Depth (Metric) | 23.88 |
| Base Item Number | GV 120 Heavy Duty, Stub, HSCO, TiN, 130° Point |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Drilling Depth | Stub length |
| Order Code | 6.7500 |
| Coolant | no |
| d2 (in) | 0.2657 |
| ItemWeight | 0.0170 |
| Substrate | HSCO |
| PackWeight | 0.0375 |
| tmax (in) | 0.9400 |
| L1 (inch) | 2.9130 |
| L2 (mm) | 34.0000 |
| tmax (mm) | 23.8800 |
| ShankCategory | straight |
| Substrate Category | Cobalt |
| d1 (in) | 0.2657 |
| L1 (mm) | 74.0000 |
| D2 (mm) | 6.7500 |
| L 2(inch) | 1.3390 |
| D1 (mm) | 6.7500 |
