Guhring
9008220240000

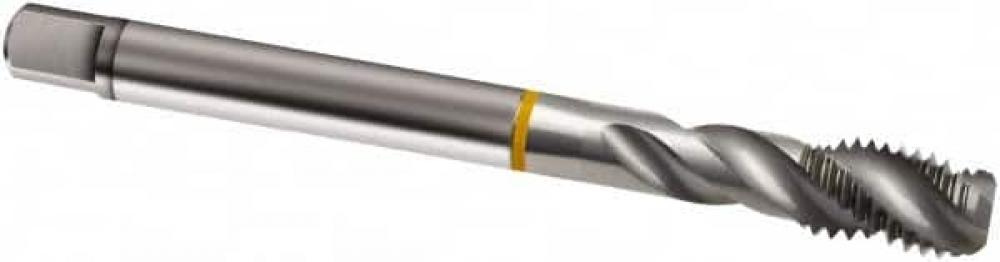

Metric blind hole yellow ring tap, cobalt, Form C 40° helix
Specifications
| Number Of Flutes | 4 |
|---|---|
| Diameter (Inch) | 0.94 |
| Type | Yellow Ring |
| Overall Length (Inch) | 6.3 |
| Coating/Finish | Uncoated |
| Material | Cobalt |
| Thread Size | M24 X 3.00 |
| Thread Standard | Metric |
| Class Of Fit | ISO2/6H |
| Thread Length (Decimal) | 1.18 |
| Thread Length (Metric) | 30 |
| Helix Angle | 40 degrees |
| Shank Diameter (Metric) | 18 |
| Diameter | M24 X 3.00 |
| Overall Length | 160 mm |
| Cutting Direction | Right |
| Shank Type | Straight |
| Hole Type | Blind Hole |
| Square (Metric) | 14.5 |
| Standard | DIN 376 |
| Hole Form | 2-3 Form C |
| Coolant | Without |
| Base Item Number | 9008220240000 |
| Product Type | Industrial Supplies |
| Size (Inch) | 0.9449 |
| Thread Type | Metric |
| L1 (inch) | 6.2992 |
| Size (Metric) | M24 X 3.00 |
| L2 (mm) | 30.0000 |
| Substrate Category | Cobalt |
| L1 (mm) | 160.0000 |
| L 2(inch) | 1.1811 |
