Guhring
9008300080030

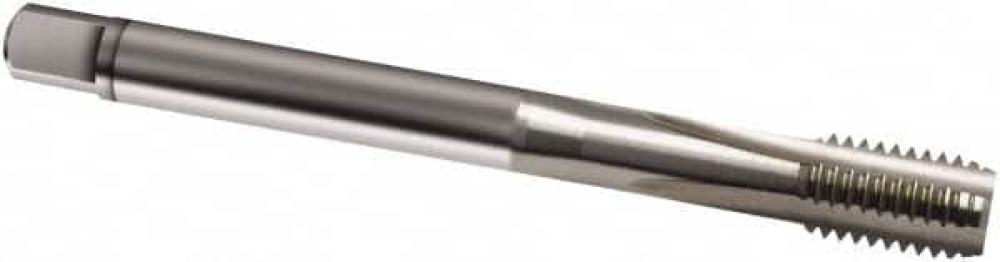

Metric fine blind or through hole yellow ring tap, cobalt, Form C
Specifications
| Number Of Flutes | 3 |
|---|---|
| Coating/Finish | Bright |
| Type | Yellow Ring |
| Cutting Direction | right hand |
| Shank Type | straight |
| Diameter | M8 X 0.50 |
| Size (Inch) | 0.3150 |
| Hole Form | 2-3 Form C |
| Coolant | without |
| L1 (inch) | 3.1496 |
| Thread Type | Metric Fine |
| Size (Metric) | M8 X 0.50 |
| L2 (mm) | 8.0000 |
| Hole Type | Blind Hole |
| Shank Diameter (mm) | 6.00 mm |
| Standard | DIN 374 |
| Substrate Category | Cobalt |
| L1 (mm) | 80.0000 |
| L 2(inch) | 0.3150 |
