Guhring
9012000240070

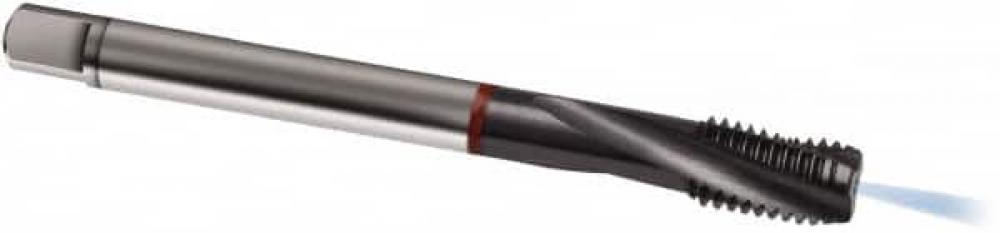

Metric fine blind hole red ring tap, PM cobalt, axial coolant fed Form C 15° helix
Specifications
| Number Of Flutes | 6 |
|---|---|
| Diameter (Inch) | 0.94 |
| Type | Red Ring |
| Overall Length (Inch) | 5.51 |
| Coating/Finish | TiCN |
| Material | Powdered Metal |
| Thread Size | M24 X 1.50 |
| Thread Standard | Metric Fine |
| Class Of Fit | 6HX |
| Thread Length (Decimal) | 0.63 |
| Thread Length (Metric) | 16 |
| Helix Angle | 15 degrees |
| Shank Diameter (Metric) | 18 |
| Diameter | M24 X 1.50 |
| Overall Length | 140 mm |
| Cutting Direction | Right |
| Shank Type | Straight |
| Hole Type | Blind Hole |
| Square (Metric) | 14.5 |
| Standard | DIN 374 |
| Hole Form | 2-3 Form C |
| Coolant | Axial |
| Base Item Number | 9012000240070 |
| Product Type | Industrial Supplies |
| Size (Inch) | 0.9449 |
| Thread Type | Metric Fine |
| L1 (inch) | 5.5118 |
| Size (Metric) | M24 X 1.50 |
| L2 (mm) | 16.0000 |
| Substrate Category | Powdered Metal |
| L1 (mm) | 140.0000 |
| L 2(inch) | 0.6299 |
