Guhring
9012420047000

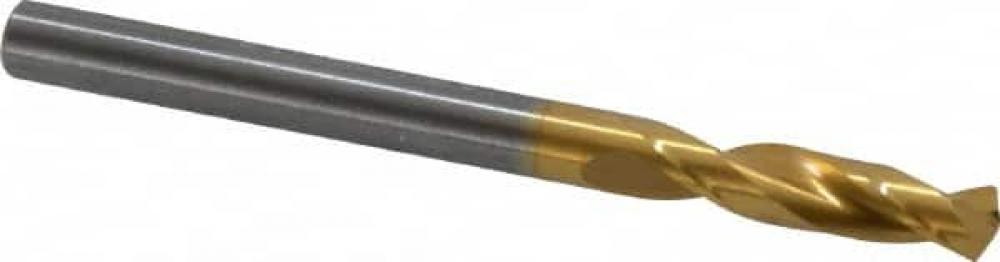

Carbide, RT 100 U high penetration, 3xD, self-centering 140° SU point, standard straight
Specifications
| Flute Length (Inch) | 0.95 |
|---|---|
| Flute Length (Metric) | 24 |
| Diameter (Metric) | 4.7 |
| Type | RT 100 U |
| Overall Length (Inch) | 2.28 |
| Overall Length (Metric) | 58 |
| Shank Size (Inch) | 0.19 |
| Material | Carbide |
| Coating/Finish | TiN |
| Diameter (Inch) | 0.19 |
| Number Of Flutes | 2 |
| Shank Size (Metric) | 4.7 |
| Unit Of Measure | Wire |
| Length to Diameter Ratio | 3xD |
| Point Angle | 140 degrees |
| Diameter | #13 |
| Shank Type | Straight |
| Diameter (Wire) | #13 |
| Length of Cut (Decimal) | 0.67 |
| Length Of Cut (Metric) | 16.95 |
| Base Item Number | 9012420047000 |
| Length To Diameter Ratio | 3xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Wire |
| Drilling Depth | 3xD |
| Order Code | 4.7000 |
| Coolant | no |
| d2 (in) | 0.1850 |
| ItemWeight | 0.0120 |
| Substrate | Carbide |
| PackWeight | 0.0265 |
| tmax (in) | 0.6670 |
| L1 (inch) | 2.2830 |
| L2 (mm) | 24.0000 |
| tmax (mm) | 16.9500 |
| ShankCategory | straight |
| Substrate Category | Carbide |
| d1 (in) | 0.1850 |
| Letter Size Code | 13.0000 |
| L1 (mm) | 58.0000 |
| D2 (mm) | 4.7000 |
| L 2(inch) | 0.9450 |
| D1 (mm) | 4.7000 |
