Guhring
9012420092000

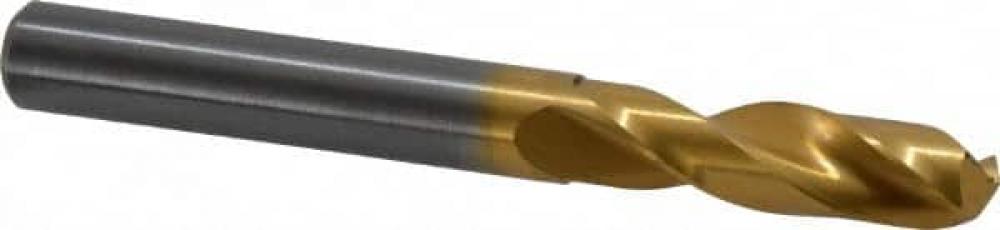

Carbide, RT 100 U high penetration, 3xD, self-centering 140° SU point, standard straight
Specifications
| Flute Length (Inch) | 1.58 |
|---|---|
| Flute Length (Metric) | 40 |
| Diameter (Metric) | 9.2 |
| Type | RT 100 U |
| Overall Length (Inch) | 3.31 |
| Overall Length (Metric) | 84 |
| Shank Size (Inch) | 0.36 |
| Material | Carbide |
| Coating/Finish | TiN |
| Diameter (Inch) | 0.36 |
| Number Of Flutes | 2 |
| Shank Size (Metric) | 9.2 |
| Unit Of Measure | Metric |
| Length to Diameter Ratio | 3xD |
| Length of Cut | 26.20 mm |
| Point Angle | 140 degrees |
| Diameter | 9.20 mm |
| Shank Type | Straight |
| Length of Cut (Decimal) | 1.03 |
| Base Item Number | 9012420092000 |
| Length To Diameter Ratio | 3xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Drilling Depth | 3xD |
| Order Code | 9.2000 |
| Coolant | no |
| d2 (in) | 0.3622 |
| ItemWeight | 0.0640 |
| Substrate | Carbide |
| PackWeight | 0.1411 |
| tmax (in) | 1.0310 |
| L1 (inch) | 3.3070 |
| L2 (mm) | 40.0000 |
| tmax (mm) | 26.2000 |
| ShankCategory | straight |
| Substrate Category | Carbide |
| d1 (in) | 0.3622 |
| L1 (mm) | 84.0000 |
| D2 (mm) | 9.2000 |
| L 2(inch) | 1.5750 |
| D1 (mm) | 9.2000 |
