Guhring
9014520035700

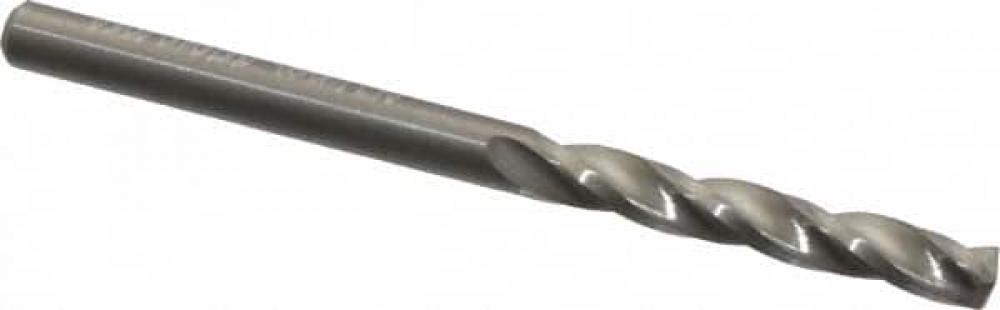

Carbide, GS 200 U three-flute high precision, 5xD, self-centering 150° point, standard st
Specifications
| Weight | 0.0050 |
|---|---|
| Shank Type | straight |
| Coolant | no |
| Diameter | 9/64 |
| Drill Point Angle | 150° |
| Number Of Flutes | 3 |
| Pack Qty | 1.0000 |
| Point Angle | 150° |
| Series | GS 200 U, 3 flute, 5xD, Carbide, Uncoated, 150° point |
| Substrate Type | Carbide |
| Type | GS 200 U |
| Drilling Depth | 5xD |
| Order Code | 3.5700 |
| d2 (in) | 0.1406 |
| ItemWeight | 0.0050 |
| Substrate | Carbide |
| PackWeight | 0.0110 |
| tmax (in) | 0.8520 |
| L1 (inch) | 2.0470 |
| L2 (mm) | 27.0000 |
| tmax (mm) | 21.6500 |
| ShankCategory | straight |
| Substrate Category | Carbide |
| d1 (in) | 0.1406 |
| Letter Size Code | 28.0000 |
| L1 (mm) | 52.0000 |
| D2 (mm) | 3.5700 |
| L 2(inch) | 1.0630 |
| D1 (mm) | 3.5700 |
