Guhring
9028960080000

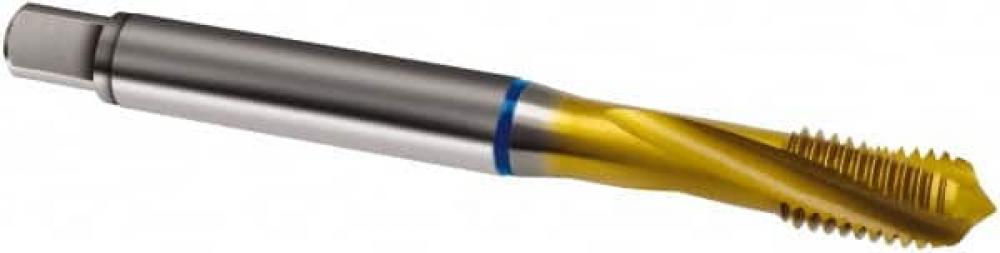

Metric blind hole blue ring tap, cobalt, Form C 15° helix
Specifications
| Number Of Flutes | 3 |
|---|---|
| Diameter (Inch) | 0.32 |
| Type | Blue Ring |
| Overall Length (Inch) | 3.54 |
| Coating/Finish | TiN |
| Material | Cobalt |
| Thread Size | M8 X 1.25 |
| Thread Standard | Metric |
| Class Of Fit | ISO2/6H |
| Thread Length (Decimal) | 0.55 |
| Thread Length (Metric) | 14 |
| Helix Angle | 15 degrees |
| Shank Diameter (Metric) | 8 |
| Diameter | M8 X 1.25 |
| Overall Length | 90 mm |
| Cutting Direction | Right |
| Shank Type | Straight |
| Hole Type | Blind Hole |
| Neck Length (Metric) | 35 |
| Square (Metric) | 6.2 |
| Standard | DIN 371 |
| Hole Form | 2-3 Form C |
| Coolant | Without |
| Base Item Number | 9028960080000 |
| Product Type | Industrial Supplies |
| Size (Inch) | 0.3150 |
| Thread Type | Metric |
| l3 (mm) | 35.0000 |
| L1 (inch) | 3.5433 |
| Size (Metric) | M8 X 1.25 |
| L2 (mm) | 14.0000 |
| Substrate Category | Cobalt |
| L1 (mm) | 90.0000 |
| L 2(inch) | 0.5512 |
