Guhring
9030490180000

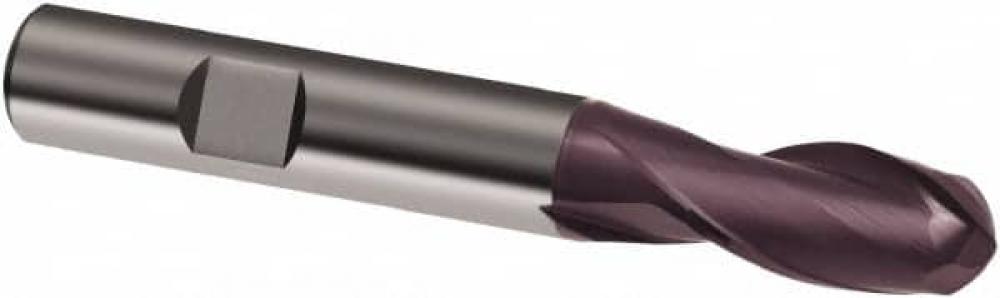

UNI PRO standard length ball nose end mill (2-fluted), metric
Specifications
| Shank Type | HB Weldon flat |
|---|---|
| Diameter (Metric) | 18.0000 |
| Overall Length (Inch) | 3.6220 |
| Length Of Cut (Inch) | 1.0240 |
| Type | Uni-Pro Ball |
| Length Of Cut (Metric) | 26.0000 |
| Diameter (Inch) | 0.7087 |
| Coolant | without |
| Short Description | 18MM UNI PRO CARBIDE BALL ENDMILL FIREX |
| Series | 3049 |
| Tolerance | h10 |
| Flutes | 2.0000 |
| Overall Length (mm) | 9.2 cm |
| Item Weight (lbs) | 0.2790 |
| Shank Diameter (Inch) | 0.7087 |
| Substrate | Carbide |
| GTIN | 04031093367332 |
| Coating | FIREX |
| Shank Diameter (mm) | 1.80 cm |
| ShankCategory | notch |
