Guhring
9031510063500

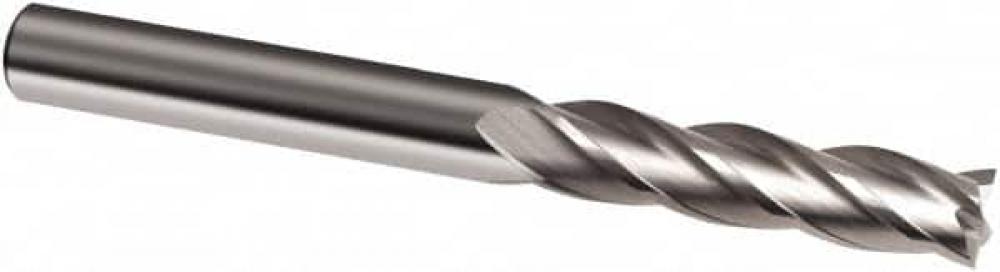

UNI PRO XL end mill (4-fluted)
Specifications
| Overall Length (Inch) | 4.0000 |
|---|---|
| Diameter (Metric) | 1/4 |
| Diameter (Inch) | 0.2500 |
| Length Of Cut (Metric) | 41.2800 |
| Type | Uni-Pro |
| Length Of Cut (Inch) | 1.6250 |
| Coolant | without |
| Short Description | 1/4" UNI PRO CARBIDE ENDMILL BRIGHT |
| Coating | Uncoated |
| GTIN | 04031093662314 |
| Tolerance | h10 |
| Shank Type | HA cylindrical |
| Flutes | 4.0000 |
| Overall Length (mm) | 10.16 cm |
| Item Weight (lbs) | 0.0390 |
| Shank Diameter (Inch) | 0.2500 |
| Substrate | Carbide |
| Series | 3151 |
| Shank Diameter (mm) | 6.35 mm |
| ShankCategory | straight |
