Guhring
9035220080000

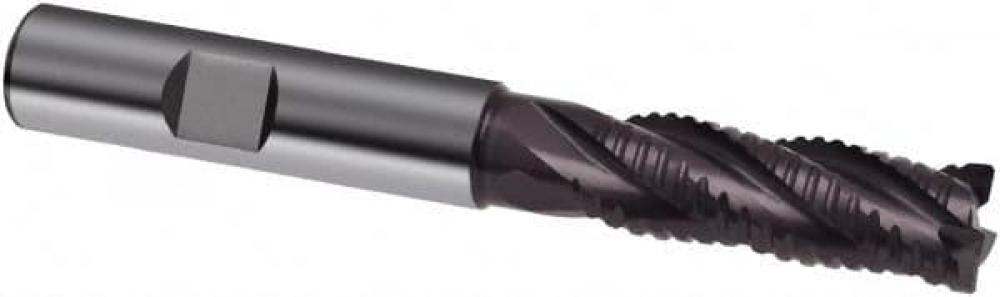

RF100 U/HF long length variable helix Roughing-finishing end mill, for materials < 54 HRC,
Specifications
| Length Of Cut (Metric) | 24.0000 |
|---|---|
| Diameter (Metric) | 8.0000 |
| Overall Length (Inch) | 2.9530 |
| Type | RF100 U/HF |
| Diameter (Inch) | 0.3150 |
| Length Of Cut (Inch) | 0.9450 |
| Short Description | 8.00MM RF100 U/HF CARBIDE ROUGHING ENDMILL FIREX |
| Series | 3522 |
| Shank Type | HB Weldon flat |
| GTIN | 04049844018419 |
| Tolerance | h10 |
| Flutes | 4.0000 |
| Coolant | without |
| Overall Length (mm) | 7.5 cm |
| Item Weight (lbs) | 0.0510 |
| Shank Diameter (Inch) | 0.3150 |
| Substrate | Carbide |
| Coating | FIREX |
| Reach (Metric) | 1.4960 |
| Shank Diameter (mm) | 8.00 mm |
| ShankCategory | notch |
