Guhring
9035950161400

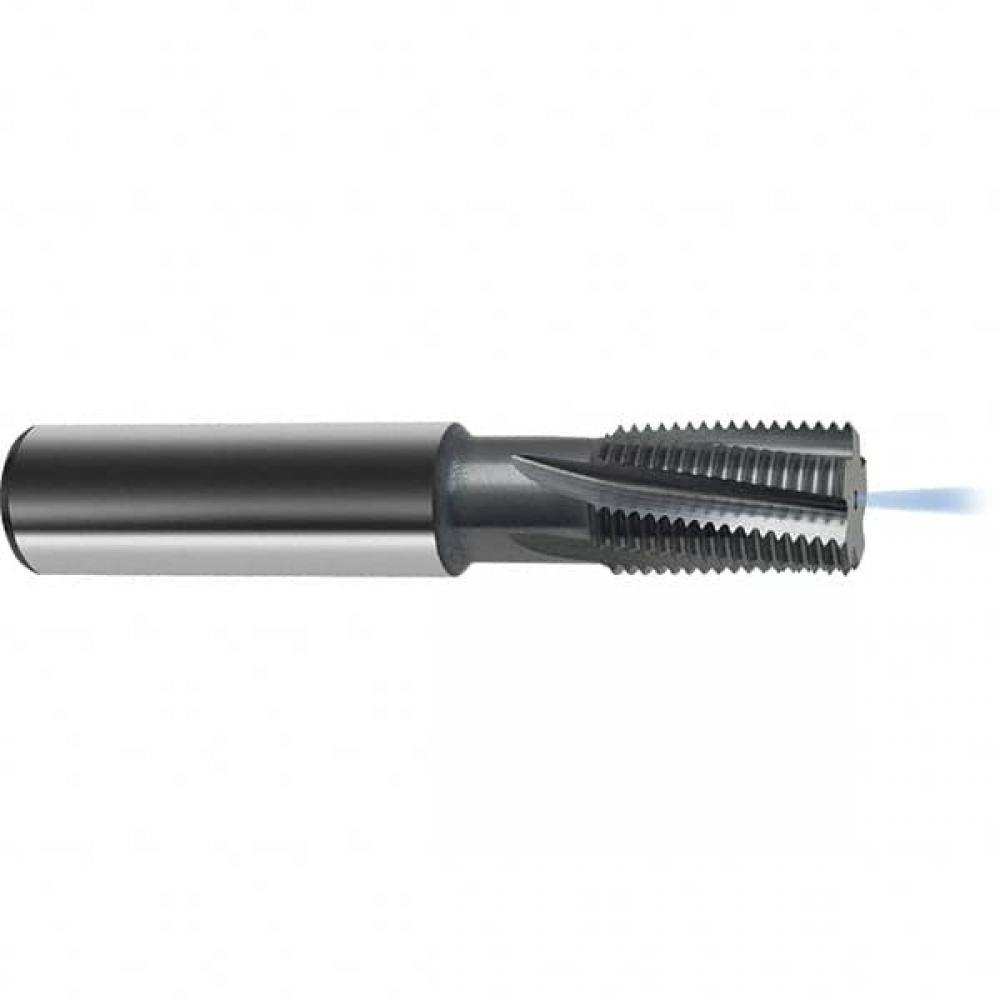

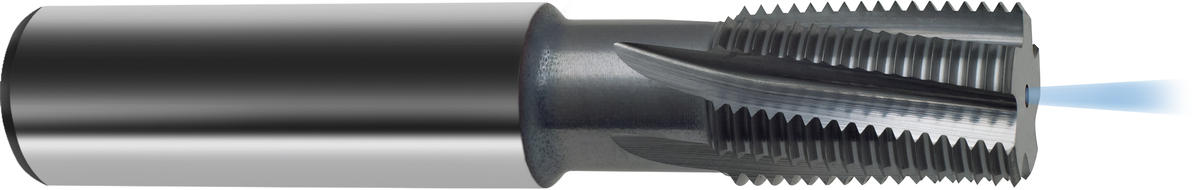

Carbide thread mill, UNC/UNF, axial coolant, TiCN coated
Specifications
| Number Of Flutes | 5 |
|---|---|
| Coating/Finish | TiCN |
| Short Description | 14 TPI, >1, TMU SP TiCN, coolant through |
| Cutting Direction | right hand |
| Long Description | Carbide thread mill, UNC/UNF, axial coolant, TiCN coated |
| Type | TMU SP |
| Size (Inch) | 0.6280 |
| Shank Type | straight |
| Coolant | axial |
| L4 (mm) | 40.0000 |
| Shank Diameter (Inch) | 0.6299 |
| GTIN | 04031093789646 |
| L1 (inch) | 3.5433 |
| Size (Metric) | 15.9500 |
| L2 (mm) | 25.0000 |
| Series | 3595 |
| Hole Type | Blind or Through hole |
| Shank Diameter (mm) | 1.60 cm |
| Standard | Guhring standard |
| Substrate Category | Carbide |
| L1 (mm) | 90.0000 |
| L 2(inch) | 0.9843 |
