Guhring
9037620100050

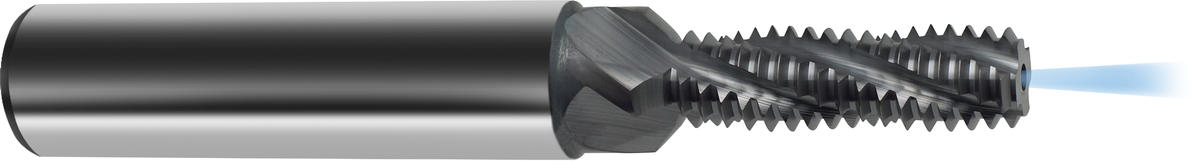

Carbide thread mill, Metric Fine, 2.5 X D, w/countersink, axial coolant, TiCN coated
Specifications
| Number Of Flutes | 4 |
|---|---|
| Coating/Finish | TiCN |
| Short Description | M10x1.00 2.5xD TMC SP Coolant Through, TiCN, with countersink |
| Cutting Direction | right hand |
| Long Description | Carbide thread mill, Metric Fine, 2.5 X D, w/countersink, axial coolant, TiCN coated |
| Type | TMC SP |
| Size (Inch) | 0.3130 |
| l3 (mm) | 45.0000 |
| Shank Type | straight |
| D3 (mm) | 11.0000 |
| Coolant | axial |
| Shank Diameter (Inch) | 0.4724 |
| L3 (inch) | 1.7717 |
| GTIN | 04031093733991 |
| L1 (inch) | 3.1496 |
| Size (Metric) | 7.9500 |
| L2 (mm) | 25.5000 |
| Series | 3762 |
| Diameter | M10 X 1.00 |
| Hole Type | Blind or Through hole |
| Shank Diameter (mm) | 1.20 cm |
| Standard | Guhring standard |
| Substrate Category | Carbide |
| L1 (mm) | 80.0000 |
| L 2(inch) | 1.0039 |
