Guhring
9039030030000

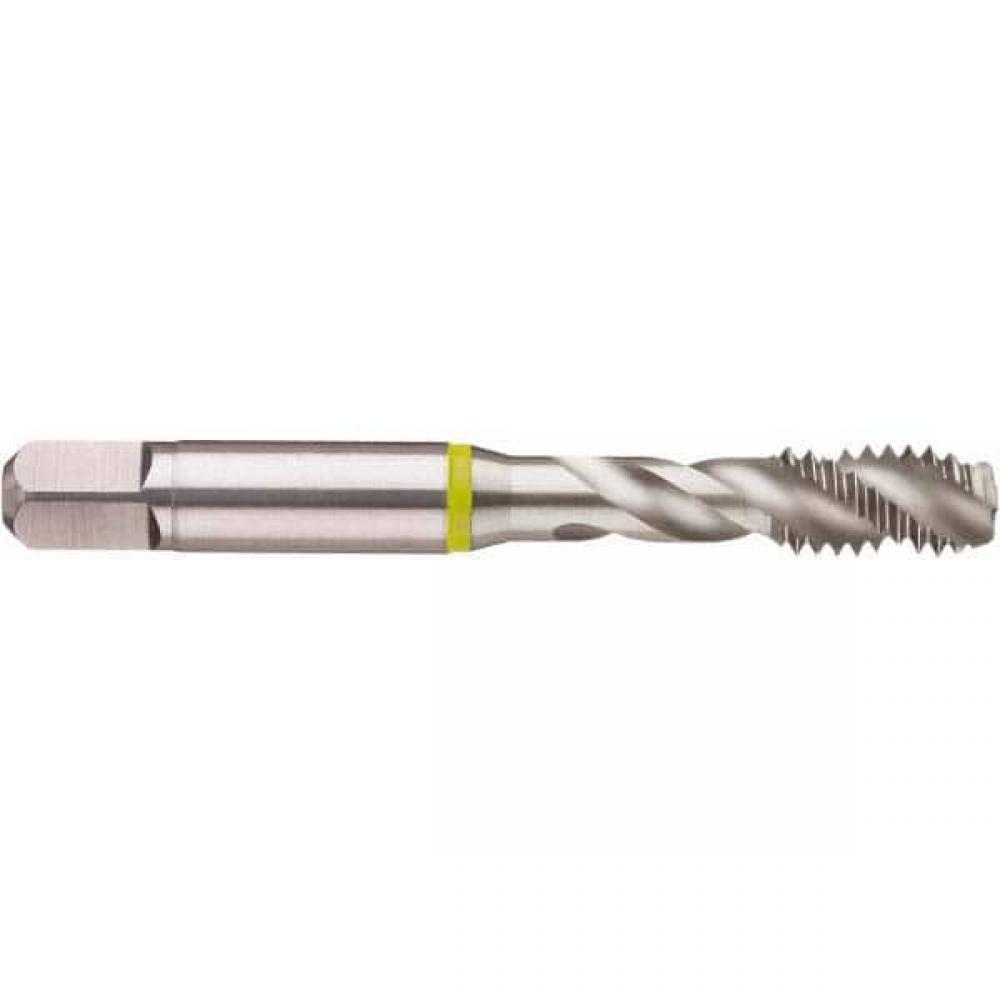

Metric blind hole yellow ring tap, cobalt, Form C 40° helix
Specifications
| Number Of Flutes | 3 |
|---|---|
| Diameter (Inch) | 0.12 |
| Type | Yellow Ring |
| Overall Length (Inch) | 1.94 |
| Coating/Finish | Uncoated |
| Material | Cobalt |
| Thread Size | M3 X 0.50 |
| Thread Standard | Metric |
| Class Of Fit | ISO2/6H |
| Thread Length (Decimal) | 0.24 |
| Thread Length (Metric) | 6 |
| Helix Angle | 40 degrees |
| Shank Diameter (Metric) | 3.58 |
| Shank Diameter (Decimal) | 0.14 |
| Diameter | M3 X 0.50 |
| Overall Length | 49.30 mm |
| Cutting Direction | Right |
| Shank Type | Straight |
| Hole Type | Blind Hole |
| Neck Length (Decimal) | 0.71 |
| Standard | ANSI |
| Hole Form | 2-3 Form C |
| Coolant | Without |
| Base Item Number | 9039030030000 |
| Product Type | Industrial Supplies |
| Size (Inch) | 0.1181 |
| Thread Type | Metric |
| L3 (inch) | 0.7090 |
| L1 (inch) | 1.9410 |
| Size (Metric) | M3 X 0.50 |
| L2 (mm) | 6.0000 |
| Substrate Category | Cobalt |
| L1 (mm) | 49.3014 |
| L 2(inch) | 0.2362 |
