Guhring
9039090080000

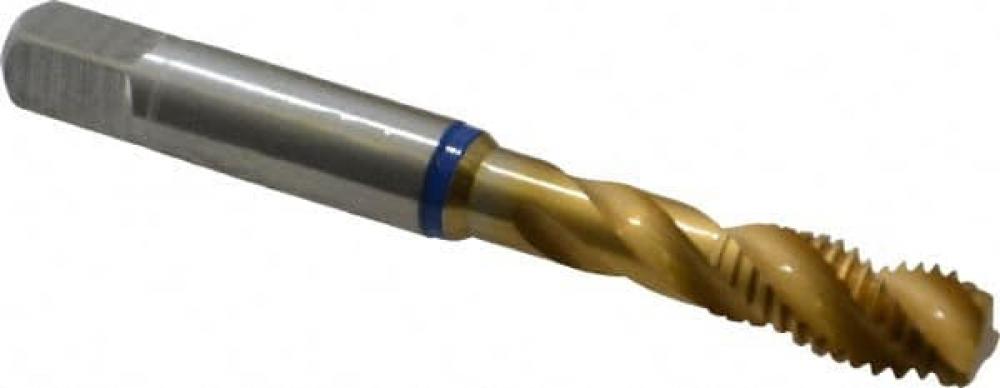

Metric blind hole blue ring tap, PM cobalt, Form C 40° helix
Specifications
| Number Of Flutes | 3 |
|---|---|
| Diameter (Inch) | 0.32 |
| Type | Blue Ring |
| Overall Length (Inch) | 2.72 |
| Coating/Finish | TiN |
| Material | Powdered Metal |
| Thread Size | M8 X 1.25 |
| Thread Standard | Metric |
| Class Of Fit | ISO2/6H |
| Thread Length (Decimal) | 0.55 |
| Thread Length (Metric) | 14 |
| Helix Angle | 40 degrees |
| Shank Diameter (Metric) | 8.08 |
| Shank Diameter (Decimal) | 0.32 |
| Diameter | M8 X 1.25 |
| Overall Length | 69.11 mm |
| Cutting Direction | Right |
| Shank Type | Straight |
| Hole Type | Blind Hole |
| Neck Length (Decimal) | 1.38 |
| Standard | ANSI |
| Hole Form | 2-3 Form C |
| Coolant | Without |
| Base Item Number | 9039090080000 |
| Product Type | Industrial Supplies |
| Size (Inch) | 0.3150 |
| Thread Type | Metric |
| L3 (inch) | 1.3770 |
| L1 (inch) | 2.7210 |
| Size (Metric) | M8 X 1.25 |
| L2 (mm) | 14.0000 |
| Substrate Category | Powdered Metal |
| L1 (mm) | 69.1134 |
| L 2(inch) | 0.5512 |
