Guhring
9039210180000

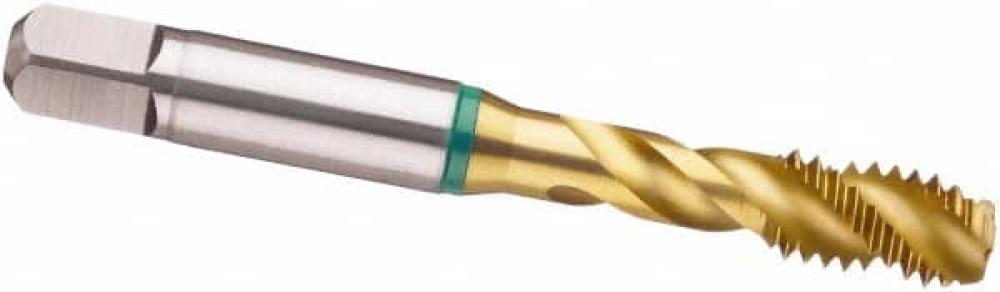

Metric blind hole green ring tap, cobalt, Form C 40° helix
Specifications
| Number Of Flutes | 4 |
|---|---|
| Diameter (Inch) | 0.71 |
| Type | Green Ring |
| Overall Length (Inch) | 4.03 |
| Coating/Finish | TiN |
| Material | Cobalt |
| Thread Size | M18 X 2.50 |
| Thread Standard | Metric |
| Class Of Fit | ISO2/6H |
| Thread Length (Decimal) | 0.98 |
| Thread Length (Metric) | 25 |
| Helix Angle | 40 degrees |
| Shank Diameter (Metric) | 13.77 |
| Shank Diameter (Decimal) | 0.54 |
| Diameter | M18 X 2.50 |
| Overall Length | 102.41 mm |
| Cutting Direction | Right |
| Shank Type | Straight |
| Hole Type | Blind Hole |
| Standard | ANSI |
| Hole Form | 2-3 Form C |
| Coolant | Without |
| Base Item Number | 9039210180000 |
| Product Type | Industrial Supplies |
| Size (Inch) | 0.7087 |
| Thread Type | Metric |
| L1 (inch) | 4.0320 |
| Size (Metric) | M18 X 2.50 |
| L2 (mm) | 25.0000 |
| Substrate Category | Cobalt |
| L1 (mm) | 102.4128 |
| L 2(inch) | 0.9843 |
