Guhring
9039760160000

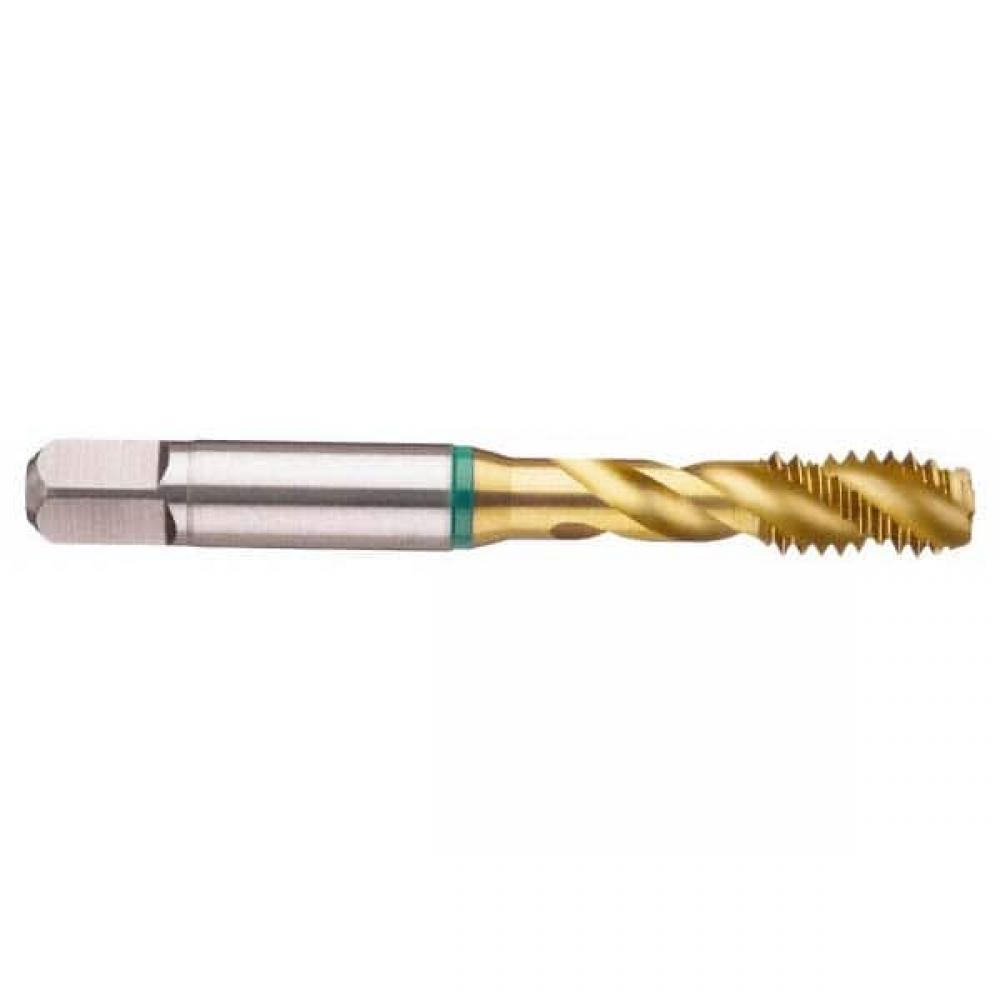

Metric blind hole green ring tap, cobalt, Form E 40° helix
Specifications
| Number Of Flutes | 4 |
|---|---|
| Diameter (Inch) | 0.63 |
| Type | Green Ring |
| Overall Length (Inch) | 3.81 |
| Coating/Finish | TiN |
| Material | Powdered Metal |
| Thread Size | M16 X 2.00 |
| Thread Standard | Metric |
| Class Of Fit | ISO2/6H |
| Helix Angle | 40 degrees |
| Shank Diameter (Metric) | 12.19 |
| Shank Diameter (Decimal) | 0.48 |
| Diameter | M16 X 2.00 |
| Overall Length | 96.80 mm |
| Cutting Direction | Right |
| Shank Type | Straight |
| Hole Type | Blind Hole |
| Standard | ANSI |
| Hole Form | 1.5-2 Form E |
| Coolant | Without |
| Base Item Number | 9039760160000 |
| Product Type | Industrial Supplies |
| Size (Inch) | 0.6299 |
| Thread Type | Metric |
| L1 (inch) | 3.8110 |
| Size (Metric) | M16 X 2.00 |
| Substrate Category | Powdered Metal |
| L1 (mm) | 96.7994 |
