Guhring
9041350095250

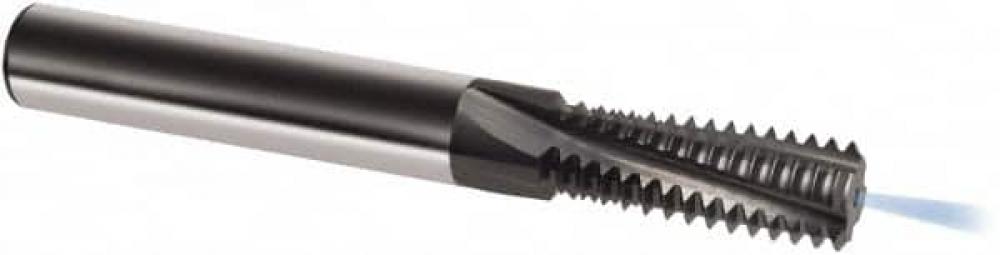

Carbide thread mill, UNC, TiCN coated
Specifications
| Number Of Flutes | 3 |
|---|---|
| Coating/Finish | TiCN |
| Short Description | 3/8-16 UNC TM SP Coolant Through, TiCN, Weldon Flat, without countersink |
| Cutting Direction | right hand |
| Long Description | Carbide thread mill, UNC, TiCN coated |
| Type | TM SP |
| Size (Inch) | 0.2992 |
| Shank Type | Weldon flat |
| Coolant | axial |
| GTIN | 04049844068469 |
| L1 (inch) | 2.5197 |
| Size (Metric) | 7.6000 |
| L2 (mm) | 21.4000 |
| Series | 4135 |
| Diameter | 3/8-16 |
| Hole Type | Blind or Through hole |
| Shank Diameter (mm) | 8.00 mm |
| Standard | Guhring standard |
| Substrate Category | Carbide |
| L1 (mm) | 64.0000 |
| L 2(inch) | 0.8425 |
