Guhring
9055100185000

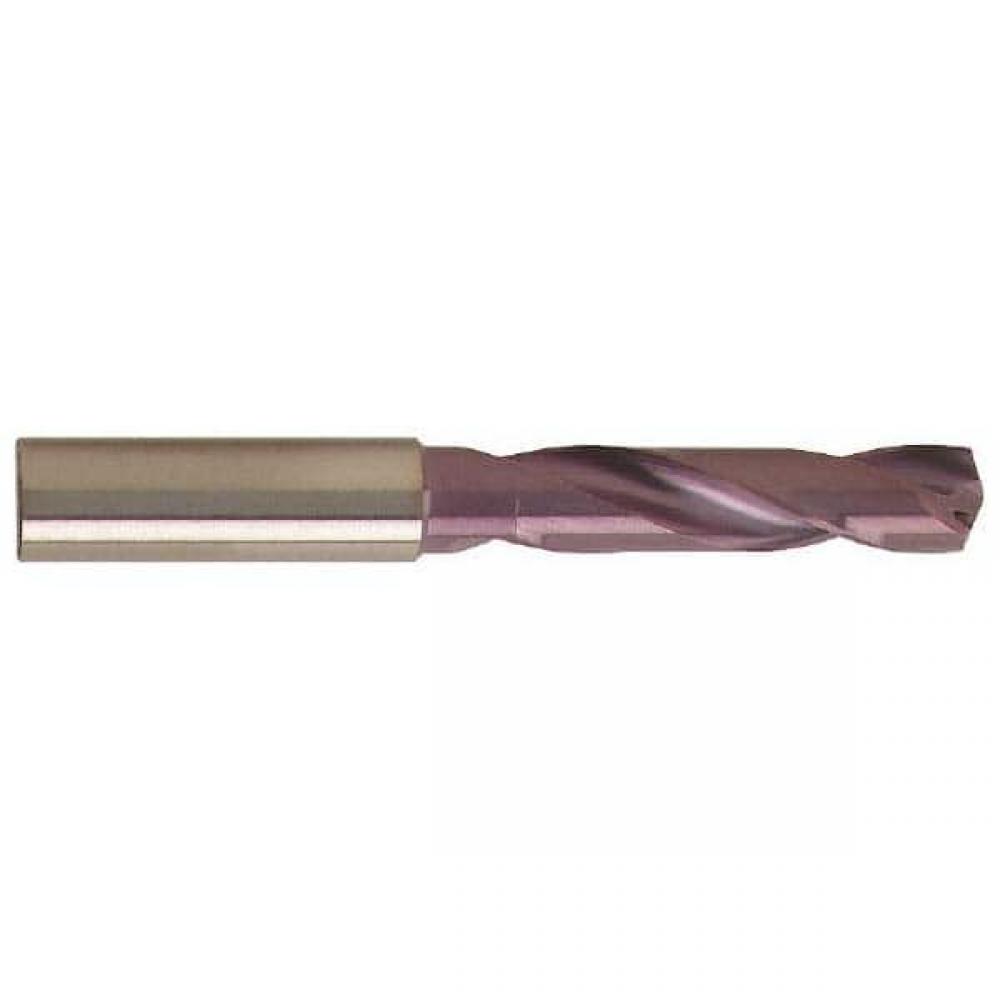

Carbide, RT 100 U high penetration, 3xD, self-centering 140° SU point, reinforced straigh
Specifications
| Flute Length (Inch) | 3.11 |
|---|---|
| Flute Length (Metric) | 79 |
| Diameter (Metric) | 18.5 |
| Type | RT 100 U |
| Overall Length (Inch) | 5.16 |
| Overall Length (Metric) | 131 |
| Shank Size (Inch) | 0.79 |
| Material | Carbide |
| Coating/Finish | nano-FIREX |
| Diameter (Inch) | 0.73 |
| Number Of Flutes | 2 |
| Shank Size (Metric) | 20 |
| Unit Of Measure | Metric |
| Length to Diameter Ratio | 3xD |
| Shank Length (Metric) | 50 |
| Length of Cut | 51.25 mm |
| Point Angle | 140 degrees |
| Diameter | 18.50 mm |
| Shank Type | HA |
| Length of Cut (Decimal) | 2.02 |
| Coolant Through | Yes |
| Base Item Number | 9055100185000 |
| Length To Diameter Ratio | 3xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| l3 (mm) | 50.0000 |
| Drilling Depth | 3xD |
| Order Code | 18.5000 |
| Coolant | yes |
| d2 (in) | 0.7874 |
| ItemWeight | 0.1787 |
| Substrate | Carbide |
| PackWeight | 0.3939 |
| tmax (in) | 2.0180 |
| L1 (inch) | 5.1570 |
| Shank Type-2 | straight |
| L2 (mm) | 79.0000 |
| tmax (mm) | 51.2500 |
| Substrate Category | Carbide |
| d1 (in) | 0.7283 |
| L1 (mm) | 131.0000 |
| D2 (mm) | 20.0000 |
| L 2(inch) | 3.1100 |
| D1 (mm) | 18.5000 |
