Guhring
9055110106000

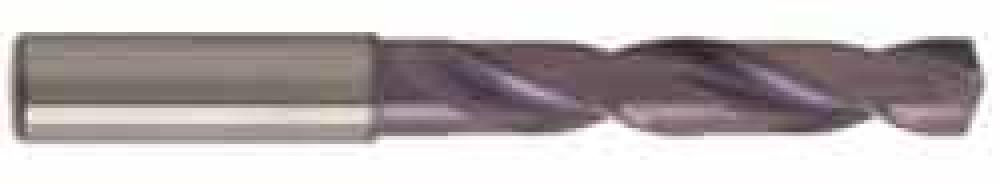

Carbide, RT 100 U high penetration, 5xD, self-centering 140° SU point, reinforced straigh
Specifications
| Coating/Finish | nano-FIREX |
|---|---|
| Number Of Flutes | 2 |
| Overall Length (Metric) | 118 |
| Diameter (Inch) | 0.42 |
| Material | Carbide |
| Diameter (Metric) | 10.6 |
| Type | RT 100 U |
| Overall Length (Inch) | 4.65 |
| Shank Size (Metric) | 12 |
| Shank Size (Inch) | 0.47 |
| Unit Of Measure | Metric |
| Length of Cut | 55.10 mm |
| Point Angle | 140 degrees |
| Shank Length (Metric) | 45 |
| Diameter | 10.60 mm |
| Flute Length | 71 mm |
| Overall Length | 118 mm |
| Shank Type | HA |
| Flute Length (Decimal) | 2.8 |
| d1 (in) | 0.4173 |
| d2 (in) | 0.4724 |
| l3 (mm) | 45.0000 |
| tmax (in) | 2.1690 |
| tmax (mm) | 55.1000 |
| Drilling Depth | 5xD |
| ItemWeight | 0.0558 |
| Substrate Category | Carbide |
| Order Code | 10.6000 |
| PackWeight | 0.1230 |
| Drilling Depth (Decimal) | 2.17 |
| Length to Diameter Ratio | 5xD |
| Coolant Through | Yes |
| Base Item Number | 9055110106000 |
| D2 (mm) | 12.0000 |
| Length To Diameter Ratio | 5xD |
| Product Type | Industrial Supplies |
| Shank Type-2 | straight |
| Unit of Measure | Metric |
| Coolant | yes |
| Substrate | Carbide |
| L1 (inch) | 4.6460 |
| L2 (mm) | 71.0000 |
| L1 (mm) | 118.0000 |
| L 2(inch) | 2.7950 |
| D1 (mm) | 10.6000 |
