Guhring
9055140154800

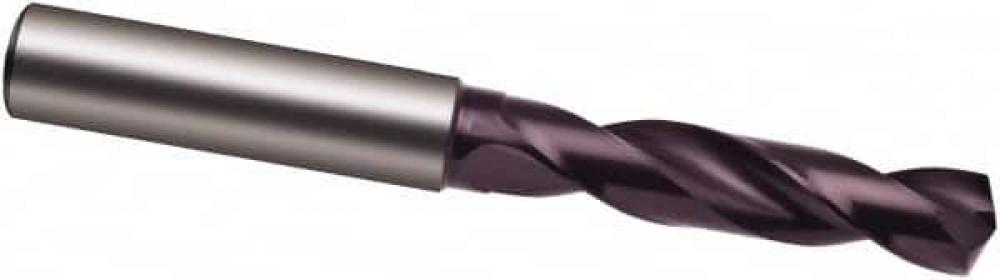

Carbide, RT 100 U high penetration, 3xD, self-centering 140° SU point, reinforced straigh
Specifications
| Flute Length (Inch) | 2.56 |
|---|---|
| Flute Length (Metric) | 65 |
| Diameter (Metric) | 15.48 |
| Type | RT 100 U |
| Overall Length (Inch) | 4.53 |
| Overall Length (Metric) | 115 |
| Shank Size (Inch) | 0.63 |
| Material | Carbide |
| Coating/Finish | nano-FIREX |
| Diameter (Inch) | 39/64 |
| Number Of Flutes | 2 |
| Shank Size (Metric) | 16 |
| Unit Of Measure | Fractional |
| Length to Diameter Ratio | 3xD |
| Shank Length (Metric) | 48 |
| Point Angle | 140 degrees |
| Diameter | 39/64 Inch |
| Shank Type | HA |
| Length of Cut (Decimal) | 1.65 |
| Length Of Cut (Metric) | 41.78 |
| Base Item Number | 9055140154800 |
| Length To Diameter Ratio | 3xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| l3 (mm) | 48.0000 |
| Drilling Depth | 3xD |
| Order Code | 15.4800 |
| Coolant | no |
| d2 (in) | 0.6299 |
| ItemWeight | 0.1152 |
| Substrate | Carbide |
| PackWeight | 0.2540 |
| tmax (in) | 1.6450 |
| L1 (inch) | 4.5280 |
| Shank Type-2 | straight |
| L2 (mm) | 65.0000 |
| tmax (mm) | 41.7800 |
| Substrate Category | Carbide |
| d1 (in) | 0.6094 |
| L1 (mm) | 115.0000 |
| D2 (mm) | 16.0000 |
| L 2(inch) | 2.5590 |
| D1 (mm) | 15.4800 |
