Guhring
9055180145000

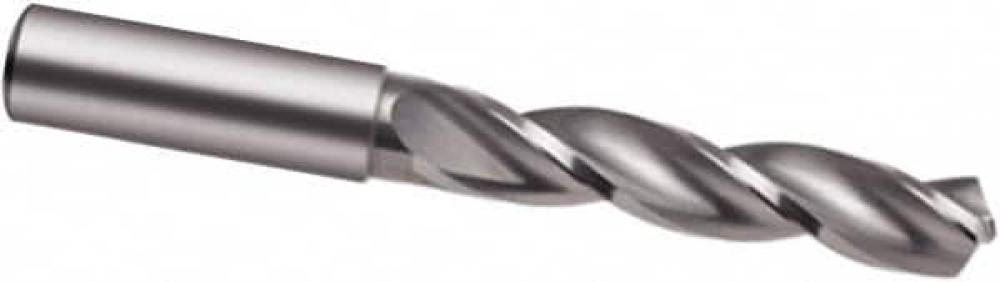

Carbide, GS 200 G three-flute high precision, 5xD, self-centering 130° point, reinforced
Specifications
| Weight | 0.0998 |
|---|---|
| Shank Type | straight |
| Coolant | no |
| Diameter | 14.5mm |
| Drill Point Angle | 130° |
| Number Of Flutes | 3 |
| Pack Qty | 1.0000 |
| Point Angle | 130° |
| Series | FT 200 G, 3 flute, 5xD, Carbide, Uncoated, 130° point |
| Substrate Type | Carbide |
| Type | FT 200 G |
| l3 (mm) | 48.0000 |
| Drilling Depth | 5xD |
| Order Code | 14.5000 |
| d2 (in) | 0.6299 |
| ItemWeight | 0.0998 |
| Substrate | Carbide |
| PackWeight | 0.2200 |
| tmax (in) | 2.4110 |
| L1 (inch) | 5.2360 |
| L2 (mm) | 83.0000 |
| tmax (mm) | 61.2500 |
| ShankCategory | straight |
| Substrate Category | Carbide |
| d1 (in) | 0.5709 |
| L1 (mm) | 133.0000 |
| D2 (mm) | 16.0000 |
| L 2(inch) | 3.2680 |
| D1 (mm) | 14.5000 |
