Guhring
9057410115000

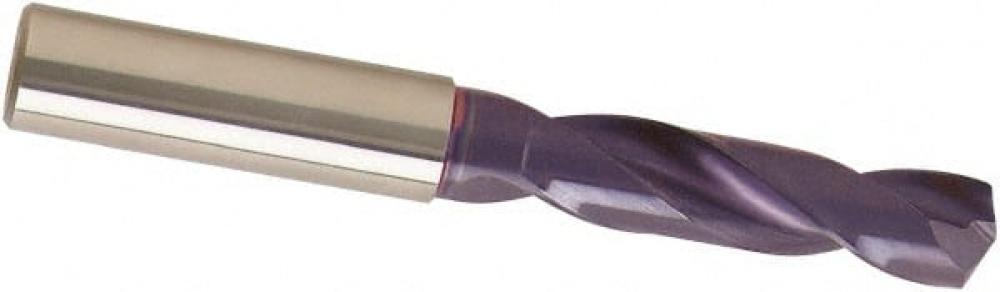

Carbide, RT 100 US high penetration, 3xD, self-centering 140° SU point, reinforced straig
Specifications
| Flute Length (Inch) | 2.17 |
|---|---|
| Flute Length (Metric) | 55 |
| Diameter (Metric) | 11.5 |
| Type | RT 100 US |
| Overall Length (Inch) | 4.02 |
| Overall Length (Metric) | 102 |
| Shank Size (Inch) | 0.47 |
| Material | Carbide |
| Coating/Finish | nano-A |
| Diameter (Inch) | 0.45 |
| Number Of Flutes | 2 |
| Shank Size (Metric) | 12 |
| Unit Of Measure | Metric |
| Length to Diameter Ratio | 3xD |
| Shank Length (Metric) | 45 |
| Length of Cut | 37.75 mm |
| Point Angle | 140 degrees |
| Diameter | 11.50 mm |
| Shank Type | HA |
| Length of Cut (Decimal) | 1.49 |
| Base Item Number | 9057410115000 |
| Length To Diameter Ratio | 3xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| l3 (mm) | 45.0000 |
| Drilling Depth | 3xD |
| Order Code | 11.5000 |
| Coolant | no |
| d2 (in) | 0.4724 |
| ItemWeight | 0.0118 |
| Substrate | Carbide |
| PackWeight | 0.0260 |
| tmax (in) | 1.4860 |
| L1 (inch) | 4.0160 |
| Shank Type-2 | straight |
| L2 (mm) | 55.0000 |
| tmax (mm) | 37.7500 |
| ShankCategory | straight |
| Substrate Category | Carbide |
| d1 (in) | 0.4528 |
| L1 (mm) | 102.0000 |
| D2 (mm) | 12.0000 |
| L 2(inch) | 2.1650 |
| D1 (mm) | 11.5000 |
