Guhring
9064010022500

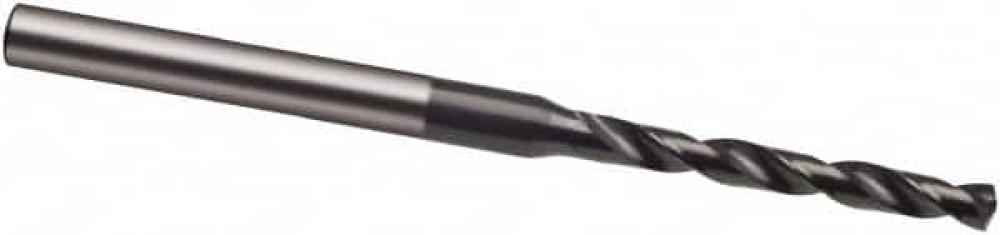

Carbide, micro-precision drill, 140° 4-facet ground hone point, reinforced straight shank
Specifications
| Number Of Flutes | 2 |
|---|---|
| Overall Length (Metric) | 63 |
| Diameter (Inch) | 0.09 |
| Material | Carbide |
| Diameter (Metric) | 2.25 |
| Type | Exclusive Line Micro-Precision |
| Overall Length (Inch) | 2.48 |
| Shank Size (Metric) | 4 |
| Shank Size (Inch) | 0.16 |
| Unit Of Measure | Metric |
| Length of Cut | 16.93 mm |
| Point Angle | 140 degrees |
| Diameter | 2.25 mm |
| Flute Length | 20.30 mm |
| Overall Length | 63 mm |
| Shank Type | HA |
| Flute Length (Decimal) | 0.8 |
| d1 (in) | 0.0886 |
| d2 (in) | 0.1575 |
| tmax (in) | 0.6670 |
| tmax (mm) | 16.9300 |
| Drilling Depth | 7xD |
| ItemWeight | 0.0036 |
| Substrate Category | Carbide |
| ShankCategory | straight |
| Order Code | 2.2500 |
| PackWeight | 0.0080 |
| Drilling Depth (Decimal) | 0.67 |
| Length to Diameter Ratio | 7xD |
| Base Item Number | 9064010022500 |
| D2 (mm) | 4.0000 |
| Length To Diameter Ratio | 7xD |
| Product Type | Industrial Supplies |
| Shank Type-2 | straight |
| Unit of Measure | Metric |
| Coolant | no |
| Substrate | Carbide |
| L1 (inch) | 2.4800 |
| L2 (mm) | 20.3000 |
| L1 (mm) | 63.0000 |
| L 2(inch) | 0.7990 |
| D1 (mm) | 2.2500 |
