Guhring
9064120016000

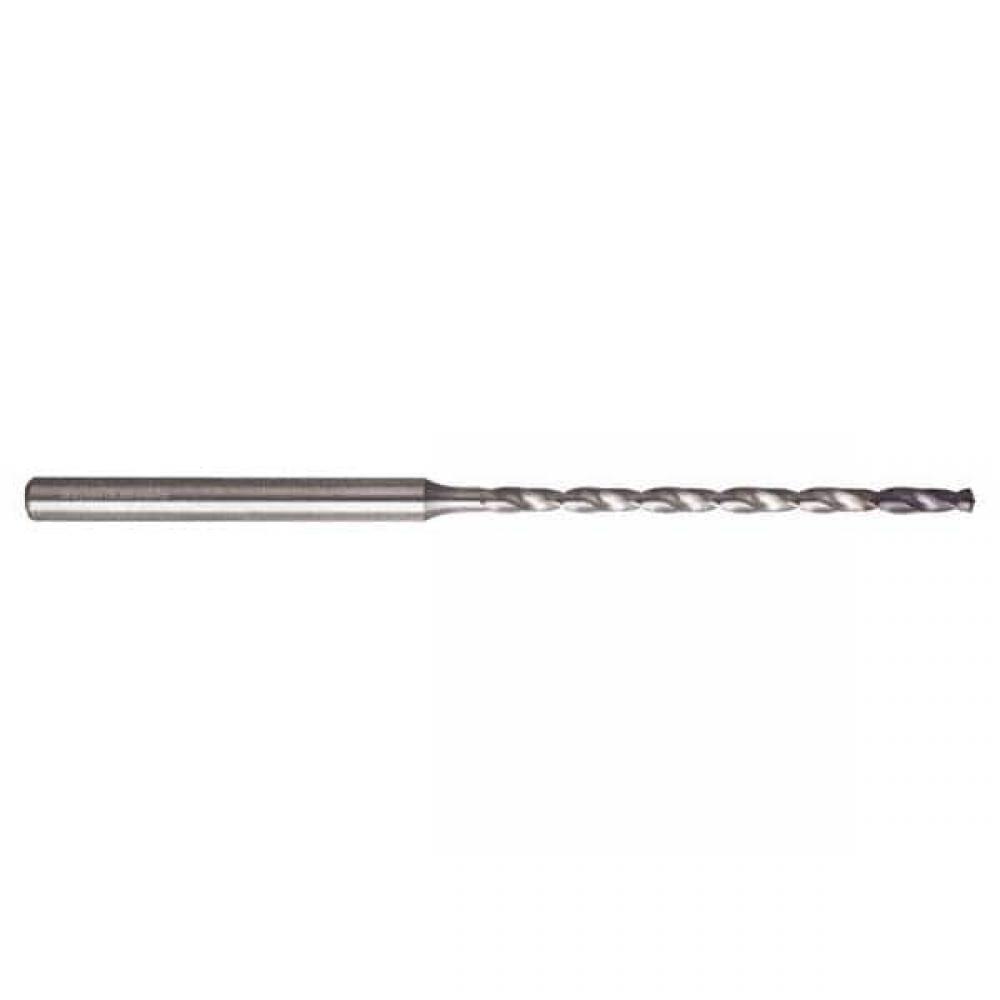

Carbide, Exclusive Line Micro Drills, 135° 4-facet ground hone point, reinforced straight
Specifications
| Shank Type | Straight |
|---|---|
| Flute Length (Inch) | 1.14 |
| Overall Length (Metric) | 62 |
| Shank Size (Metric) | 4 |
| Type | Exclusive Line Micro-Precision |
| Material | Carbide |
| Diameter (Metric) | 1.6 |
| Number Of Flutes | 2 |
| Coating/Finish | TiAlN |
| Overall Length (Inch) | 2.44 |
| Flute Length (Metric) | 29 mm |
| Diameter (Inch) | 0.06 |
| Shank Size (Inch) | 0.16 |
| Diameter | 1.60 mm |
| Unit Of Measure | Metric |
| Point Angle | 135 degrees |
| Overall Length | 62 mm |
| Length of Cut | 26.60 mm |
| Shank Size | 4 mm |
| Length of Cut (Decimal) | 1.05 |
| Length to Diameter Ratio | 15xD |
| Coolant | Yes |
| Base Item Number | 9064120016000 |
| Length To Diameter Ratio | 15xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Drilling Depth | 15xD |
| Order Code | 1.6000 |
| d2 (in) | 0.1575 |
| ItemWeight | 0.0068 |
| Substrate | Carbide |
| PackWeight | 0.0150 |
| tmax (in) | 1.0470 |
| L1 (inch) | 2.4410 |
| Shank Type-2 | straight |
| L2 (mm) | 29.0000 |
| tmax (mm) | 26.6000 |
| ShankCategory | straight |
| Substrate Category | Carbide |
| d1 (in) | 0.0630 |
| L1 (mm) | 62.0000 |
| D2 (mm) | 4.0000 |
| L 2(inch) | 1.1420 |
| D1 (mm) | 1.6000 |
