Guhring
9067290250400

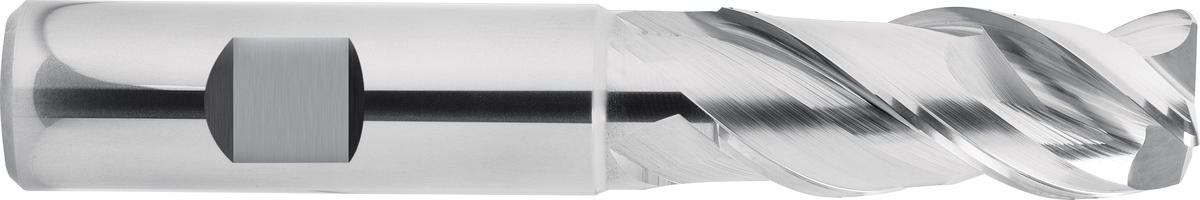

RF100 A Carbide end mill Uncoated
Specifications
| Length Of Cut (Inch) | 1.77 |
|---|---|
| Material | Carbide |
| Cutting Diameter (Inch) | 0.98 |
| Overall Length (Inch) | 4.76 |
| Cutting Diameter (Metric) | 25 |
| Type | RF100 |
| Length Of Cut (Metric) | 45 |
| Shank Diameter (Inch) | 0.9843 |
| Overall Length (Metric) | 121 |
| Coating/Finish | Uncoated |
| Number Of Flutes | 3 |
| Unit Of Measure | Metric |
| Coolant | without |
| Short Description | 25MM RF100 A CARBIDE ENDMILL BRIGHT |
| Reach (Metric) | 63 |
| Reach (Decimal) | 2.48 |
| Shank Size | 25 mm |
| Shank Size (Decimal) | 0.98 |
| Point Angle | 35/40/41 degrees |
| Shank Type | HB Weldon Flat |
| Series | 6729 |
| Base Item Number | 6729 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Item Weight (lbs) | 1.5876 |
| Substrate | Carbide |
| GTIN | 04049844138100 |
| Diameter (Inch) | 0.9843 |
| Shank Diameter (mm) | 2.50 cm |
| ShankCategory | notch |
