Guhring
9067370156000

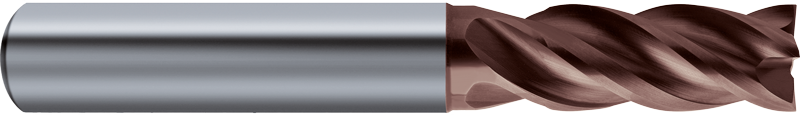

RF100 Diver Carbide end mill, metric, HA shank
Specifications
| Length Of Cut (Inch) | 1.26 |
|---|---|
| Material | Carbide |
| Overall Length (Inch) | 3.62 |
| Type | RF100 Diver |
| Length Of Cut (Metric) | 32 |
| Shank Diameter (Inch) | 0.6299 |
| Overall Length (Metric) | 92 |
| Coating/Finish | nano-Si |
| Number Of Flutes | 4 |
| Unit Of Measure | Metric |
| Coolant | without |
| Short Description | 15.6MM RF100 DIVER ENDMILL NANO-SI |
| Reach (Metric) | 44 |
| Reach (Decimal) | 1.65 |
| Diameter | 15.60 mm |
| Shank Size | 16 mm |
| Overall Length | 92 mm |
| Diameter (Decimal) | 0.61 |
| Shank Size (Decimal) | 0.63 |
| Point Angle | 36/37/38 degrees |
| Shank Type | HA Cylindrical |
| Tolerance | h10 |
| Series | 6737 |
| Diameter (Metric) | 15.6000 |
| Base Item Number | 6737 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Item Weight (lbs) | 0.1093 |
| Trade Name | Diver |
| Substrate | Carbide |
| GTIN | 04049844139459 |
| Diameter (Inch) | 0.6142 |
| Shank Diameter (mm) | 1.60 cm |
| ShankCategory | straight |
