Guhring
9067590254000

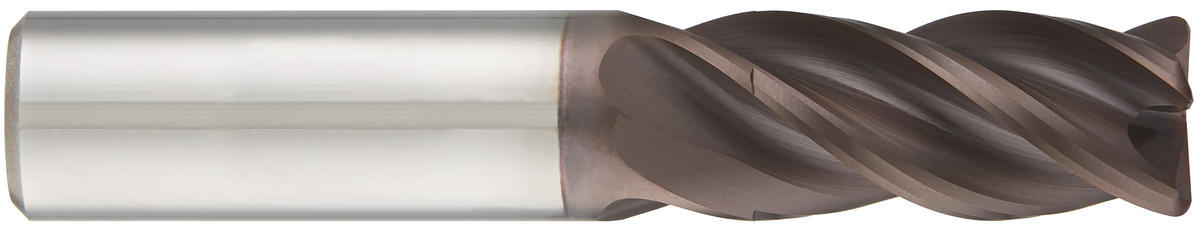

RF100 Diver carbide end mill, inch sizes with corner radii
Specifications
| Length Of Cut (Inch) | 1.5 |
|---|---|
| Material | Carbide |
| Cutting Diameter (Inch) | 1 |
| Overall Length (Inch) | 5 |
| Type | RF100 |
| Length Of Cut (Metric) | 38.1 |
| Shank Diameter (Inch) | 1.0000 |
| Overall Length (Metric) | 127 |
| Coating/Finish | nano-Si |
| Number Of Flutes | 4 |
| Unit Of Measure | Imperial |
| Coolant | without |
| Short Description | 1" RF100 DIVER ENDMILL, 0.190 RAD NANO-SI |
| Shank Size | 1 Inch |
| Shank Size (Metric) | 25.4 |
| Point Angle | 36/37/38 degrees |
| Shank Type | HB Weldon Flat |
| Tolerance | h10 |
| Length of Cut (Fractional) | 1-1/2 |
| Series | 6759 |
| Diameter (Metric) | 1.0000 |
| Base Item Number | 6759 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Item Weight (lbs) | 0.3738 |
| Trade Name | Diver |
| Substrate | Carbide |
| GTIN | 04049844153615 |
| Diameter (Inch) | 1.0000 |
| ShankCategory | notch |
