Guhring
9067610060000

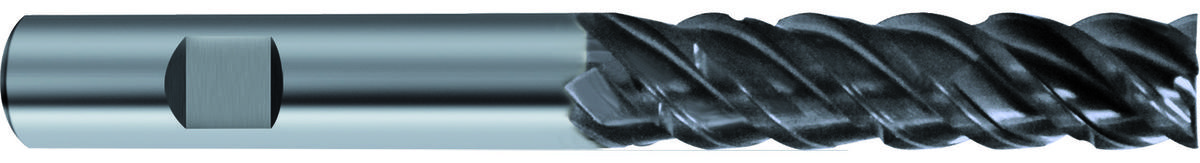

Metric RF100 Speed 4-fl extra length end mill
Specifications
| Length Of Cut (Inch) | 0.95 |
|---|---|
| Material | Carbide |
| Overall Length (Inch) | 2.56 |
| Type | RF100 Speed |
| Length Of Cut (Metric) | 24 |
| Shank Diameter (Inch) | 0.2362 |
| Overall Length (Metric) | 65 |
| Coating/Finish | Super-A |
| Number Of Flutes | 4 |
| Unit Of Measure | Metric |
| Coolant | without |
| Short Description | 6.000MM RF100 Speed Extra Length ENDMILL |
| Diameter | 6 mm |
| Shank Size | 6 mm |
| Overall Length | 65 mm |
| Diameter (Decimal) | 0.24 |
| Shank Size (Decimal) | 0.24 |
| Point Angle | 48 degrees |
| Shank Type | HB Weldon Flat |
| Series | 6761 |
| Diameter (Metric) | 6.0000 |
| Base Item Number | 6761 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Item Weight (lbs) | 0.0573 |
| Trade Name | RF100 Speed |
| Substrate | Carbide |
| GTIN | 04049844147256 |
| Diameter (Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 mm |
| ShankCategory | notch |
