Guhring
9067650100000

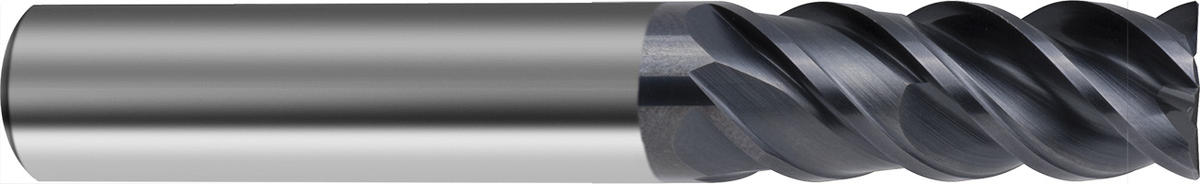

Metric RF100 Speed 4-fl std. length end mill
Specifications
| Length Of Cut (Inch) | 0.95 |
|---|---|
| Material | Carbide |
| Overall Length (Inch) | 2.84 |
| Type | RF100 Speed |
| Length Of Cut (Metric) | 24 |
| Shank Diameter (Inch) | 0.3937 |
| Overall Length (Metric) | 72 |
| Coating/Finish | Super-A |
| Number Of Flutes | 4 |
| Unit Of Measure | Metric |
| Coolant | without |
| Short Description | 10.000MM RF100 Speed carbide ENDMILL |
| Diameter | 10 mm |
| Shank Size | 10 mm |
| Overall Length | 72 mm |
| Diameter (Decimal) | 0.39 |
| Shank Size (Decimal) | 0.39 |
| Point Angle | 48 degrees |
| Shank Type | HA Cylindrical |
| Series | 6765 |
| Diameter (Metric) | 10.0000 |
| Base Item Number | 6765 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Item Weight (lbs) | 0.1918 |
| Trade Name | RF100 Speed |
| Substrate | Carbide |
| GTIN | 04049844155268 |
| Diameter (Inch) | 0.3937 |
| Shank Diameter (mm) | 1.00 cm |
| ShankCategory | straight |
