Guhring
9067730190500

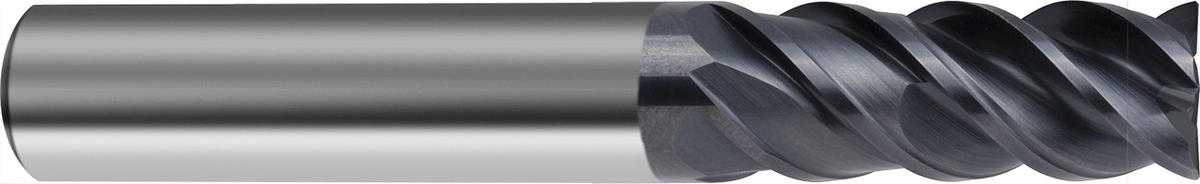

Inch RF100 Speed 4-fl std. length end mill
Specifications
| Length Of Cut (Inch) | 1-1/2 |
|---|---|
| Material | Carbide |
| Overall Length (Inch) | 4 |
| Type | RF100 Speed |
| Length Of Cut (Metric) | 38.1 |
| Shank Diameter (Inch) | 0.7500 |
| Overall Length (Metric) | 101.6 |
| Coating/Finish | nano-A |
| Number Of Flutes | 4 |
| Unit Of Measure | Fractional |
| Coolant | without |
| Short Description | 3/4" RF100 SPEED CARBIDE ENDMILL NANO-A |
| Diameter | 3/4 Inch |
| Shank Size | 3/4 Inch |
| Diameter (Decimal) | 0.75 |
| Shank Size (Decimal) | 0.75 |
| Shank Size (Metric) | 19.05 |
| Point Angle | 48 degrees |
| Shank Type | HB Weldon Flat |
| Series | 6773 |
| Diameter (Metric) | 3/4 |
| Base Item Number | 6773 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Item Weight (lbs) | 0.0907 |
| Trade Name | RF100 Speed |
| Substrate | Carbide |
| GTIN | 04049844202498 |
| Diameter (Inch) | 0.7500 |
| ShankCategory | notch |
