Guhring
9085110190500

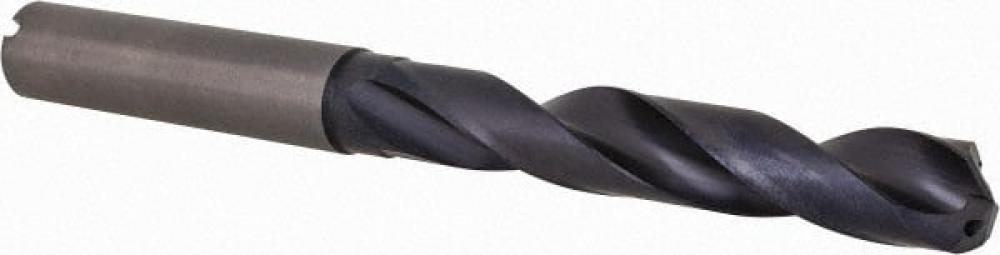

Carbide, RT 100 VA, 5xD, self-centering 140° VA point, reinforced straight shank, RH heli
Specifications
| Coating/Finish | nano-A |
|---|---|
| Number Of Flutes | 2 |
| Overall Length (Metric) | 153 |
| Diameter (Inch) | 0.75 |
| Material | Carbide |
| Diameter (Metric) | 19.05 |
| Type | RT 100 VA |
| Overall Length (Inch) | 6.02 |
| Shank Size (Metric) | 20 |
| Shank Size (Inch) | 0.79 |
| Unit Of Measure | Fractional |
| Point Angle | 140 degrees |
| Shank Length (Metric) | 50 |
| Diameter | 3/4 Inch |
| Shank Type | HA |
| Flute Length (Decimal) | 3.98 |
| Flute Length (Metric) | 101 |
| d1 (in) | 0.7500 |
| d2 (in) | 0.7874 |
| l3 (mm) | 50.0000 |
| tmax (in) | 2.8520 |
| tmax (mm) | 72.4300 |
| Drilling Depth | 5xD |
| ItemWeight | 0.2064 |
| Substrate Category | Carbide |
| ShankCategory | straight |
| Order Code | 19.0500 |
| PackWeight | 0.4549 |
| Drilling Depth (Decimal) | 2.85 |
| Drilling Depth (Metric) | 72.43 |
| Length to Diameter Ratio | 5xD |
| Coolant Through | Yes |
| Base Item Number | 9085110190500 |
| D2 (mm) | 20.0000 |
| Length To Diameter Ratio | 5xD |
| Product Type | Industrial Supplies |
| Shank Type-2 | straight |
| Unit of Measure | Fractional |
| Coolant | yes |
| Substrate | Carbide |
| L1 (inch) | 6.0240 |
| L2 (mm) | 101.0000 |
| L1 (mm) | 153.0000 |
| L 2(inch) | 3.9760 |
| D1 (mm) | 19.0500 |
