Guhring
9085210039000

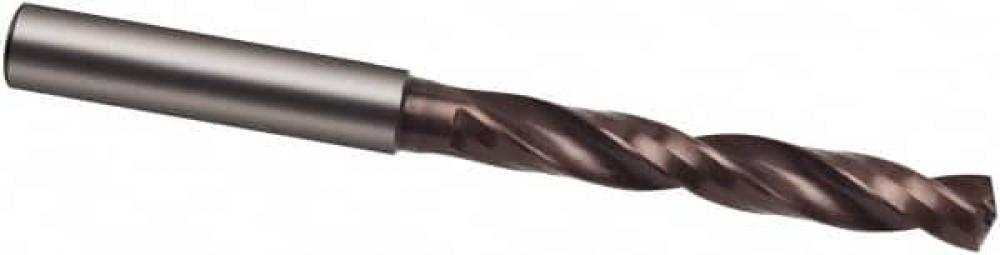

Carbide, RT 100 HF, 5xD, double margin, self-centering 140° HF point, reinforced straight
Specifications
| Coating/Finish | nano-Si |
|---|---|
| Number Of Flutes | 2 |
| Overall Length (Metric) | 74 |
| Diameter (Inch) | 0.15 |
| Material | Carbide |
| Diameter (Metric) | 3.9 |
| Type | RT 100 HF |
| Overall Length (Inch) | 2.91 |
| Shank Size (Metric) | 6 |
| Shank Size (Inch) | 0.24 |
| Unit Of Measure | Metric |
| Length of Cut | 30.15 mm |
| Point Angle | 140 degrees |
| Shank Length (Metric) | 36 |
| Diameter | 3.90 mm |
| Flute Length | 36 mm |
| Overall Length | 74 mm |
| Shank Type | HA |
| Flute Length (Decimal) | 1.42 |
| d1 (in) | 0.1535 |
| d2 (in) | 0.2362 |
| l3 (mm) | 36.0000 |
| tmax (in) | 1.1870 |
| tmax (mm) | 30.1500 |
| Drilling Depth | 5xD |
| ItemWeight | 0.0091 |
| Substrate Category | Carbide |
| ShankCategory | straight |
| Order Code | 3.9000 |
| PackWeight | 0.0200 |
| Drilling Depth (Decimal) | 1.19 |
| Length to Diameter Ratio | 5xD |
| Coolant Through | Yes |
| Base Item Number | 9085210039000 |
| D2 (mm) | 6.0000 |
| Length To Diameter Ratio | 5xD |
| Product Type | Industrial Supplies |
| Shank Type-2 | straight |
| Unit of Measure | Metric |
| Coolant | yes |
| Substrate | Carbide |
| L1 (inch) | 2.9130 |
| L2 (mm) | 36.0000 |
| L1 (mm) | 74.0000 |
| L 2(inch) | 1.4170 |
| D1 (mm) | 3.9000 |
